| Place of Origin: | Guangdong,China |
|---|---|
| Certification: | ROHS |
| Model Number: | M-TN300 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Packed in Carton |
| Delivery Time: | 5~8 Days |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS |
| Model Number: | M-TN300 | Application: | High Temperature |
|---|---|---|---|
| Thermal Conductivity: | 3.0W/m·K | Color: | Pink |
| Hardness: | 30~60 Shore C | Flame Rating: | 94 V-0 |
| Material: | Composite Polymer | Continuous Service Temperature: | -60 To 200°C |
| High Light: | 3.0W/m·K thermally Conductive Putty,3.0W/m·K thermal contact paste,60 Shore C heat conductive putty |
||
Hardness 30~60 Shore C thermally Conductive Putty Used For Heat sink
Product Description

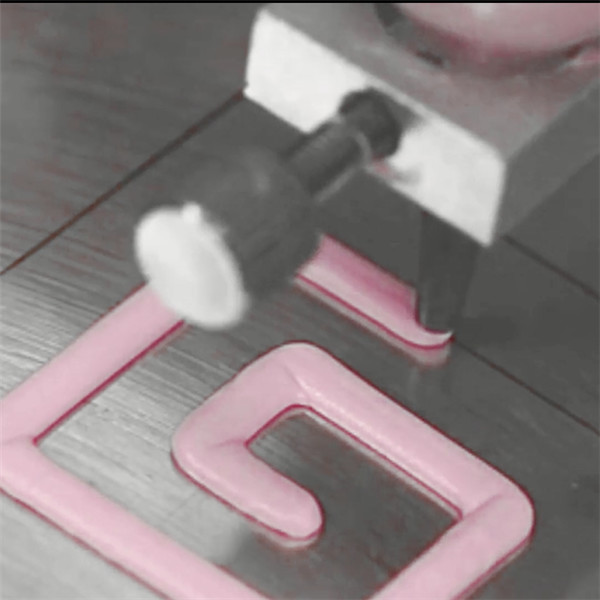

M-TN300Thermal gel is a very low thermal conductivity material with a certain degree of fluidity and plasticized plasticity. It is suitable for heat dissipation modules or components with large thickness changes. Its inherent adhesive properties, without bonding layer, and has good wettability, can cover the micro-uneven surface so that the matching parts fully contact and improve the heat transfer efficiency. Unlike thermal conductive silicone grease, M-TN300 thermal gel has no sedimentation and no flow phenomenon. It is suitable for dispensing equipment, screen printing or scraping, and can also be customized for different thickness products for easy use.
Features
Typical applications
Technical parameter
|
Property |
Unit |
M-TN300 |
Test Method |
|
Color |
- |
Multicolor |
Visual |
|
Extrusion rate |
g/min |
30 |
30cc Syringe & 0.1”Needle @90psi |
|
Hardness |
Shore C |
30-60 |
- |
|
Thermal conductivity
|
W/m·K | 3.0 | ASTM D5470 |
|
Thermal resistance
|
@ 20 psi |
0.10°C·in2/W 0.65°C·cm2/W |
ASTM D5470 |
|
Flame Rating |
- |
94 V-0 |
U.L. |
|
Breakdown Voltage
|
kV(@1mm) | ＞10.0 | ASTM D149 |
|
Volume
|
Ω·cm | 1.0×1014 | ASTM D257 |
|
Density |
g/cm3 |
3.0 |
ASTM D792 |
|
Dielectric Constant
|
@1 MHz | 6.3 | ASTM D150 |
|
Permeability TML (CVCM) |
% | ≤0.15 (0.05) | ASTM E595 |
|
Continuous service temperature
|
°C | -60 to 200 | *** |
|
ROHS Compliant |
- |
Yes |
*** |
Packing & Shipping

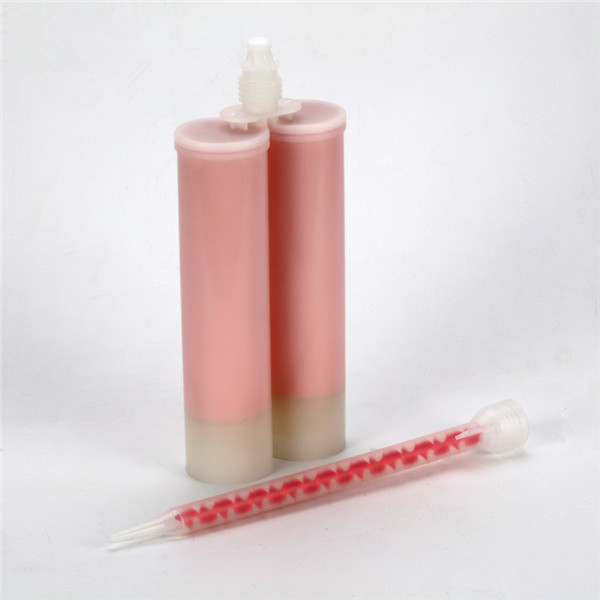

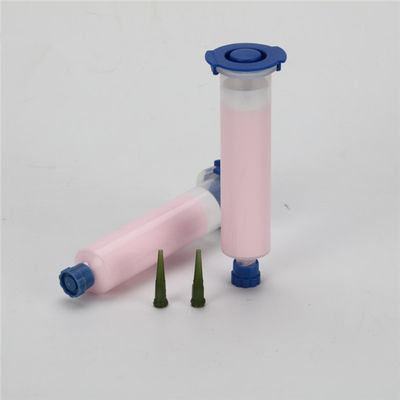

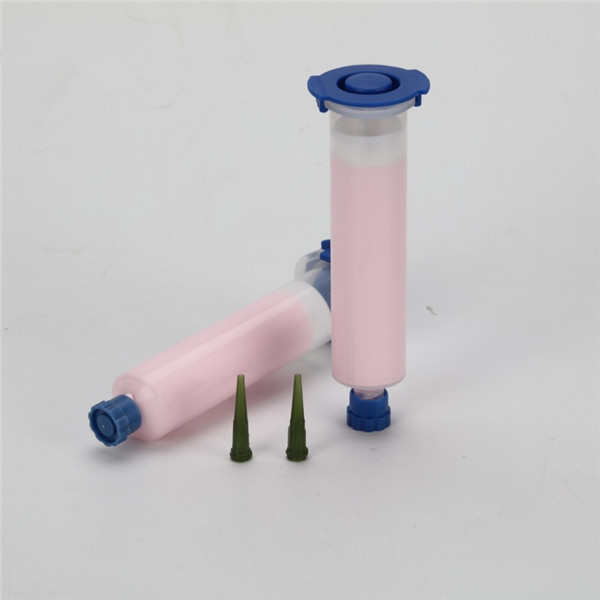

Packing:1 kg/tank, 10 kg/tank;30cc, 55cc... Syringe
Shipping
FAQ
1. What are your main products?
We supply thermally conductive pad, graphene Material, thermal adhesive tape, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.
2. What about the product quality and which certificate do you have?
We have UL certificate,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
