4900kpa 1000W/Mk Thermal Conductive Graphite Sheet

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,SGS
Model Number: M-GR
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~8 Days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detail Information
Hardness: 85 Shore A Color: Black
Density: 01.5-1.8 G/cm3 Thermal Conductivity: 1000w/mk
C Content (%): 99% Type: Composite Sheet
Flame Rating: UL94V-0 Tensile Strength: 4900kpa
High Light:

1000W/mk pyrolytic graphite plate

,

4900kpa pyrolytic graphite plate

,

1000W/mk thermal conductive graphite sheet


Product Description

1000W/mk High Conductivity Pyrolytic Graphite Sheets Flexible Black Graphite Sheet

Product Description


Thermal Graphite



    M-GR1000 synthetic graphiteis use of polyimide film, coal pitch coke, petroleum coke and other

accessories and sintering into, high heat transfer, thermal conductivity is in 800~1500w/m-k,

mainly used in smart phone, tablet, LED, TV and other electronic products of theheat dissipation



Feature



1. Light weight.

2. Easy operation

3. Low thermal resistance

4. Ultra high thermal conductivity



Physical Properties





Model No.



M-GR1000



Thickness(mm)



0.07±0.010

Thermal Conductivity (W/M-K)



X,Y direction



600-800



Z direction



15



Thermal Diffusivity(cm^2/s)



8.30-11.07



Density(g/cc)



0.85



Specific Heat(50℃)(J/g.K)



0.85



Continuous Temperature Resistance(℃)



400

Extensional Strength (Mpa)



X,Y direction



19.2



Z direction



0.65



Bending Test(times)(R5/180°)



>10000



Electric Conductivity(S/m)



0.96x106



Application



1. LED, heat sink, LCD-TV

2. video camera, digital camera

3. DVD, handheld devices mobile phone

4. Laptop, communication equipments, wireless switches



4900kpa 1000W/Mk Thermal Conductive Graphite Sheet 0

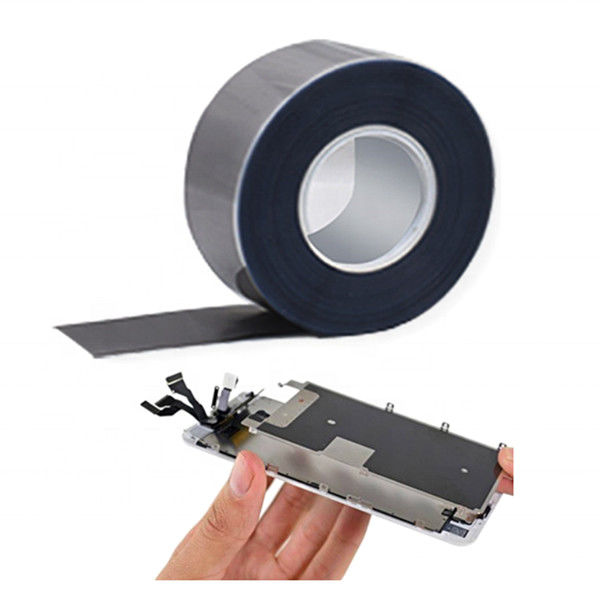

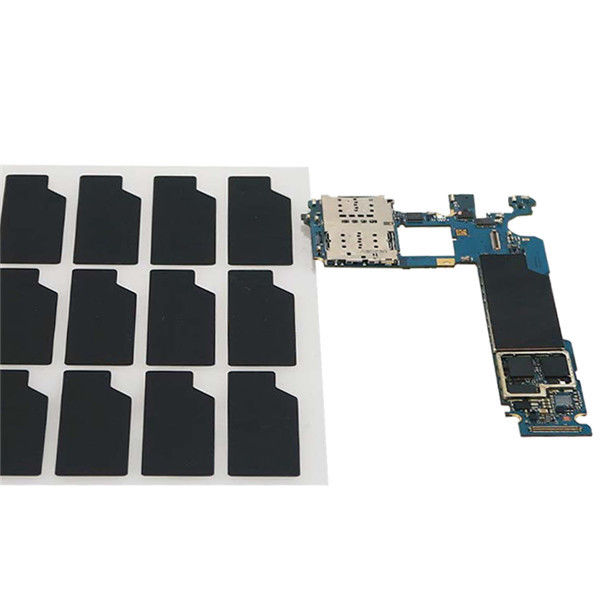

Product Pictures

4900kpa 1000W/Mk Thermal Conductive Graphite Sheet 1

4900kpa 1000W/Mk Thermal Conductive Graphite Sheet 2

4900kpa 1000W/Mk Thermal Conductive Graphite Sheet 3



Packing & Shipping



Packaging Details: by box or OPP bags , also can according to customer's requirement



Delivery Details: After payment 1-3 working days



Payment Terms: Bank Transfer, T/T, Paypal

4900kpa 1000W/Mk Thermal Conductive Graphite Sheet 4



Our Services



Customers would be provided with below services if you are interested in our products.

A. Customized order like different cutting sizes, die-cutting designs are all available.

B. Professional recommendations on product choice for customers.

C. Free samples available.

D. Competitive prices.

E. In time delivery.

F. Quality assurance.





FAQ



Q: What is the size of the product you can supply?

A: Thickness: 0.06mm/ 0.075mm/0.11mm

Jumbo roll size: 500mm X 500m

Log roll size: 500mm X 33m

Slit roll size: We can make the width down to 1mm Custom size is welcomed



Q: May I get samples?

A: Yes, of course.

A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.



Q: How about the price?

A : Polyimide tape manufacturer direct sale price

Also, supply this item in various grades to meet customer demands.



Q: What is your MOQ?

A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.



Q: What should we pay attention to when used it?

A: Just let know application, then we shall offer solutions.
