Black 1.78g/Cm3 650MPa Thermal Conductive Graphite Sheet

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,SGS
Model Number: M-GT
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~8 Days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detail Information
Material: Synthetic Graphite Thermal Conductivity: 1700w/mk
Hardness: 85 Shore A Grade: Industrial Grade
Type: Flexible Sheet Thickness: 0.05-1.0mm
Density: 1.7-1.78g/cm3 Color: Black
High Light:

650MPa thermal conductive graphite sheet

,

650MPa synthetic graphite sheet

,

1.78g/cm3 synthetic graphite sheet


Product Description

Black High Performance Ultra Thin 1700W Thermal Graphite Sheet For Transfer Heat

Product Description


Product Name

Black High Performance Ultra Thin 1700W Thermal Graphite Sheet For Transfer Heat

Material



high quality thermal graphite sheet


Color



Black


Working Temperature



-40℃~400℃

Feature

1,GSM is made from flake graphite (99.5%),Light weight
2, Ultra-high thermal conductive performance / easy to operate
3,Reliable performance from -40℃to 400℃
4,Low thermal resistance
5,Offered in thicknesses from 0.05mm~0.5mm
6,Can be adhesive-backed and Insulative adhesion
Type , RoHS compliant and UL94V0 flammability rated.



Application

1. Conductive graphite sheet is a kind of totally new thermal & radiating material, heat conducting evenly along two directions, shielding with heat and component while improving the performance of the consumer electronic products.

2. IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop; Communication equipment;

3. Wireless switch; DVD; Hand-held device; Camera/digital camera; Mobile phone.



  This material is synthetically made of graphite polymer, super thin, high thermal conductive, and flexible. It has been widely used in small high integrated electronic applications. It can be cut into customized size and shape, backed with adhesive and membrane.It is an ideal material as heat spreader.Also,it is a material consisting of graphitic carbon which has been obtained by graphitizing of non-graphitic carbon, by CVD from hydrocarbons at temperatures above 2500 K, by decomposition of thermally unstable carbides or by crystallizing from metal melts supersaturated with carbon.

Physical Properties



Property



Synthetic Graphite

Unit Tolerance



M-GT17



M-GT25



M-GT40

Thick ness



0.017



0.025



0.04



mm



±10%

Thermal Conductivity(X,Y axis)



1600~1900



1500~1700



1100~1300



W/m.K



-

Thermal Conductivity(Z axis)



15-20



15-20



15-20



W/m.K



-

Thermal Diffusion



9.09~9.94



8.40~8.96



7.62~9.80



m2/s



-

Hardness



85



Shore A



±10%

Density



>2.1



>2.1



1.6-1.8



g/cm3



-



Specific Heat Capacity(50 °C )



0.85



J/kg.K

-



Working Temperature



-40~400



°C

-



Bend Test(R5/180°)



>10000



times

-



Tensile Strength



650



MPa

-



Environmental suitability



Halogen/ROHS



/





Flame Retardant



V0



UL94

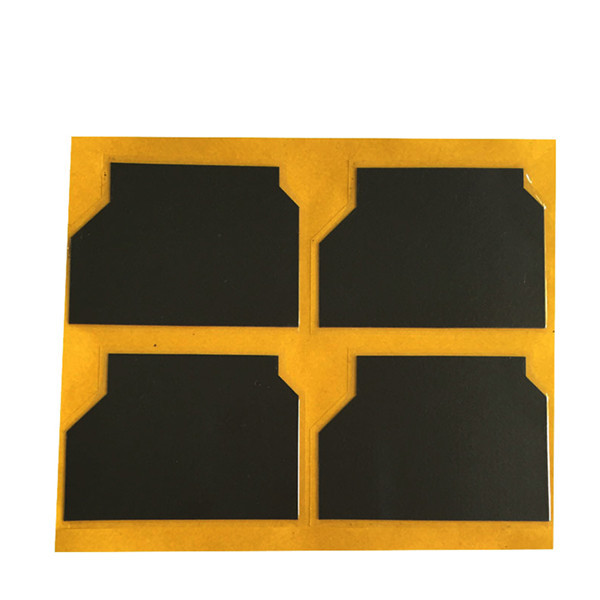

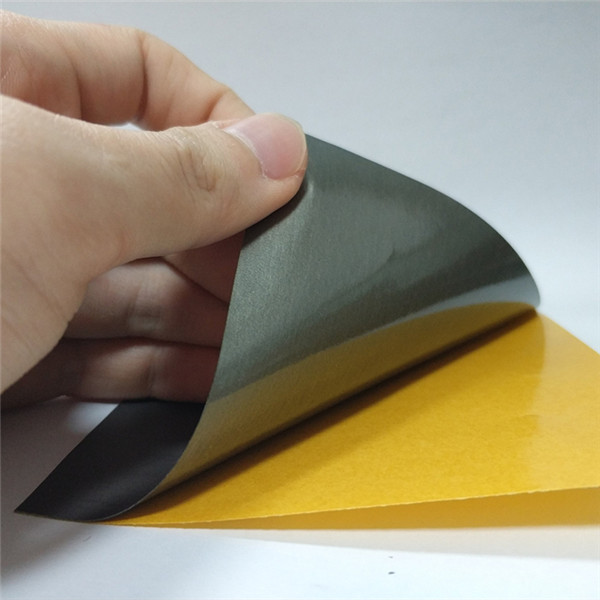

Product Details

Black 1.78g/Cm3 650MPa Thermal Conductive Graphite Sheet 0Black 1.78g/Cm3 650MPa Thermal Conductive Graphite Sheet 1Black 1.78g/Cm3 650MPa Thermal Conductive Graphite Sheet 2



Product Usages

Black 1.78g/Cm3 650MPa Thermal Conductive Graphite Sheet 3

FAQ



Q: What is the size of the product you can supply?

A: Thickness: 0.06mm/ 0.075mm/0.11mm

Jumbo roll size: 500mm X 500m

Log roll size: 500mm X 33m

Slit roll size: We can make the width down to 1mm Custom size is welcomed



Q: May I get samples?

A: Yes, of course.

A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.



Q: How about the price?

A : Polyimide tape manufacturer direct sale price

Also, supply this item in various grades to meet customer demands.



Q: What is your MOQ?

A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.



Q: What should we pay attention to when used it?

A: Just let know application, then we shall offer solutions.
