0.025mm Thickness 20m Length Thermal Conductive Graphite Sheet

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,SGS
Model Number: MG-GT
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~8 Days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detail Information
Continuous Use Temp: -40-400℃ C Content (%): 99.9%
Application: IC CPU MOS LED Heat Sink Hardness: 85 Shore A
Grade: Industrial Grade Size: T:0.025mm W:300mm L:20m
Thickness: 0.025mm Color: Silver Grey
High Light:

20m Length thermal conductive graphite sheet

,

0.025mm thickness Natural Graphite Sheet

,

20m Length Natural Graphite Sheet


Product Description

0.025mm 300mm Width 20m Length Smartphone Heat Dissipation Natural Graphite Sheet

Product Description:



    M-GT thermal conductivity of graphite is the natural graphite sheet with high thermal conductivity. Which is easy construct. It is flexible and compressible. Also, it can provide a coating (such as insulation requirement) , non-coating, or something wrapped. The applicable temperature extends from -40~400℃(inert environment).Without gas, liquid penetrate, no aging for graphite layer and embitterment, it can be applied into most of the chemical medium. Thermal conductivity of graphite can be custom-made required by clients. It has wide applications, such as integrated circuit, electronic device, high power density computer, conducting cutting-edge electronic instrument and so on. Which enjoys a good market background in mobile phone, computer and electronics industry.

Features & Benefits

l Ultra-high thermal conductivity, easy to operate;

l Low thermal resistance

l Light weight

Typical Applications

IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop; Communication equipment; Wireless switch; DVD; Hand-held device; Camera/digital camera; Mobile phone



What’s the different between Natural Graphite Sheet & Systhetic Graphite Sheet?

1.Natural graphite sheet color darker than
Systhetic graphite sheet .
2. Natural graphite sheet price lower than Systhetic graphite sheet .
3. Systhetic graphite sheet has less impurities and density ,
thermal conductivity can reach at 1900W / m-K,higher than Natural graphite sheet .
4. Natural graphite sheet is softer.



Physical Properties





Property



M-GT



Unit



Test Method



Thickness



0.03



0.05



0.07



0.1



0.15



mm



ASTM D374



Color



Black



Black



Black



Black



Black





Visual



Specific Gravity



1.78



1.7



1.65



1.6



1.6



g/cm3



ASTM D792

Thermal conductivity

1200

1100 900 700 700 w/m-k



/



ASTM D5470

11 10 9 8 8



/



ASTM D5470



Temperature range



400



400



400



400



400





EN344

Product Pictures

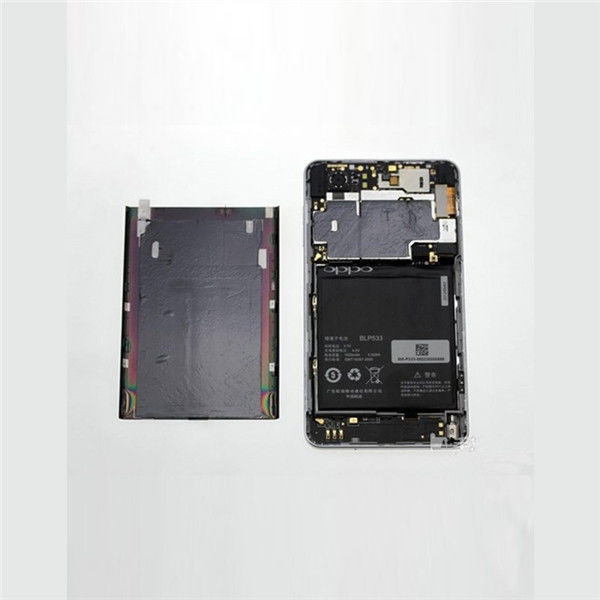

0.025mm Thickness 20m Length Thermal Conductive Graphite Sheet 0



0.025mm Thickness 20m Length Thermal Conductive Graphite Sheet 1




FAQ



Q: What is the size of the product you can supply?

A: Thickness: 0.06mm/ 0.075mm/0.11mm

Jumbo roll size: 500mm X 500m

Log roll size: 500mm X 33m

Slit roll size: We can make the width down to 1mm Custom size is welcomed



Q: May I get samples?

A: Yes, of course.

A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.



Q: How about the price?

A : Polyimide tape manufacturer direct sale price

Also, supply this item in various grades to meet customer demands.



Q: What is your MOQ?

A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.



Q: What should we pay attention to when used it?

A: Just let know application, then we shall offer solutions.
