1.5mm Thickness 2.1g/Cm3 Heat Thermal Insulation Sheet

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,SGS
Model Number: M-GR
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~8 Days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detail Information
Application: Smart Phones,Cellular Phone C Content (%): 99.9%
Material: High Purity Graphtite Usage: LED Lighting/Heat Sink/LCD-TV/DVD/PC/Mobiles
Packing: Export Standard Packing Name: Graphite Parts
Sample: Sample Supplied Thickness: 0.03mm~1.5mm
High Light:

1.5mm thickness Thermal Graphite Sheet

,

2.1g/cm3 heat thermal insulation sheet

,

1.5mm thickness graphite sheets plates


Product Description

0.03 ~1.5 mm Electrical Insulation Conductive Thermal Graphite Sheet For Mobile Phone

Product description

    Synthetic graphite sheet, also called artificial graphite sheet, , is a new kind of thin film material sintered from polyimide. It has a unique grain orientation, can conduct heat evenly along both directions (x-y-axis and z-axis), and the laminate structure can be well adapted to any surface. The thermal conductivity of the plane can reach 1900w /m.K. M-GT products while also the thickness of uniform heat to provide thermal isolation while improving the performance of consumer electronics products.
Synthetic graphite sheet is available with an adhesive backing on one side, which can significantly improve the thermal resistance. A wide range of die-cut shapes & components are manufactured to customer specifications on request.

Features of synthetic graphite sheet

★ Ultra-high thermal conductivity —the maximum thermal conductivity in the plane can reach 1900 W/m.k.

★ Ultralight —30% lighter than aluminum of the same size and 80% lighter than copper.

★ Ultra-thin —the thickness can be from 0.017 to 0.07mm.

★ Temperature resistance —the maximum operating temperature can reach 2800℃ and the minimum can be lower than -40℃.

★ easy processing —can be die-cut into different sizes, shapes.
★ Ease of use —graphite fins can be attached smoothly to any flat and curved surface.
★ Flexibility —it is easy to laminate with metal, insulating or double-sided adhesive to increase design flexibility and can be processed with adhesives

Parameter table of synthetic graphite sheet


Test Item

Unit

M-GR12

M-GR17

M-GR25

M-GR40

Carbon content


99.99%

99.99%

99.99%

99.99%

Color


Silver grey

Silver grey

Silver grey

Silver grey

Thickness

mm

0.012

0.017

0.025

0.04

Thickness tolerance

mm

±0.005

±0.005

±0.005

±0.008

Density

g/cm³

2.1

2.1

1.6~2.0

1.6~2.0

Hardness

shore A

85

85

85

85

Tensile Strength

psi

650

650

650

650

lame Rating


94V0

94V0

94V0

94V0

Continuous Use Temp


-40-2800

-40-2800

-40-2800

-40-2800
Thermal Conductive
(X-Y axis)

w/m.k

1700~1900

1700~1900

1700~1800

1500~1800
Thermal Conductive
(Z axis)

w/m.k

20~30

15~20

15~20

15~20

Thermal resistance


450

450

450

450

Electric Conductivity

s/cm

20000

20000

20000

20000

★ Standard size:Sheet:300mm*300mm,Roll:300mm*150m. Customized size available

★ Thickness:0.017—0.07 mm

Can be processed into various sizes and any kinds of shapes according to customers’ demands. You can choose synthetic graphite bare material (conductive), you can also choose to add adhesives and membrane (insulation). Please tell us your needs

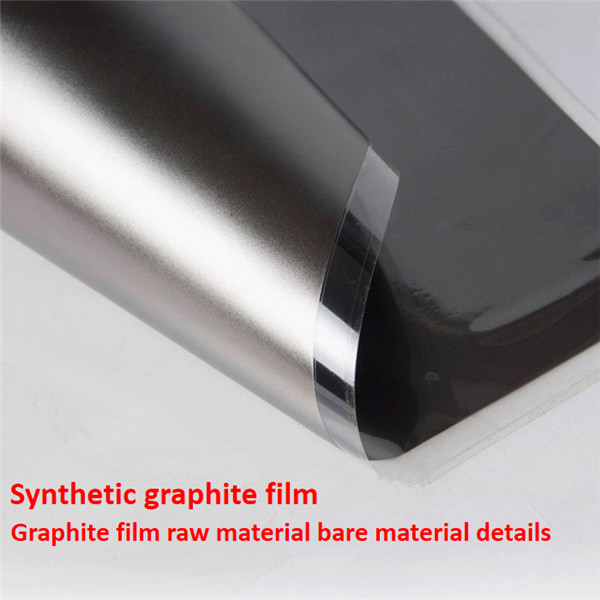

1.5mm Thickness 2.1g/Cm3 Heat Thermal Insulation Sheet 01.5mm Thickness 2.1g/Cm3 Heat Thermal Insulation Sheet 11.5mm Thickness 2.1g/Cm3 Heat Thermal Insulation Sheet 2



Typical application

★ Between the Circuit board chip and heat sink of LCD-TV
★ PDP chip and IC
★ Between the transformer and the shell.
★ Between Led particle base and aluminum plate
★ Between PCB board and its shell
★ Between IC and heat sink
★ Laptop NB display card and network card
★ Between heat sink and shell

1.5mm Thickness 2.1g/Cm3 Heat Thermal Insulation Sheet 3


Product Pictures

1.5mm Thickness 2.1g/Cm3 Heat Thermal Insulation Sheet 4

1.5mm Thickness 2.1g/Cm3 Heat Thermal Insulation Sheet 5

FAQ



Q: What is the size of the product you can supply?

A: Thickness: 0.06mm/ 0.075mm/0.11mm

Jumbo roll size: 500mm X 500m

Log roll size: 500mm X 33m

Slit roll size: We can make the width down to 1mm Custom size is welcomed



Q: May I get samples?

A: Yes, of course.

A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.



Q: How about the price?

A : Polyimide tape manufacturer direct sale price

Also, supply this item in various grades to meet customer demands.



Q: What is your MOQ?

A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.



Q: What should we pay attention to when used it?

A: Just let know application, then we shall offer solutions.
