0.1mm Thickness 3 W/M·K Thermal Conductive Pad

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,SGS
Model Number: MG-GT
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~8 Days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detail Information
Grade: Industrial Grade Type: Composite Sheet
Sample: Sample Supplied Shape: Shape Customized
Hardness: 80 Shore A Size: Can Be Customized
C Content (%): 99% Usage: LED Lighting/Heat Sink/LCD-TV/DVD/PC/Mobiles
High Light:

0.1mm thickness thermal graphite film

,

13 W/m·K thermal conductive pad

,

0.1mm thickness reinforced graphite sheet


Product Description

Thickness 0.1mm Natural Graphite Sheet Use In IC CPU MOS LED Thermal Pad Graphene

Product Description

    Synthetic graphite is a material consisting of graphitic carbon which has been obtained by graphitizing of non-graphitic carbon, by CVD from hydrocarbons at temperatures above 2500 K, by decomposition of thermally unstable carbides or by crystallizing from metal melts supersaturated with carbon.


Features & Benefits



l Ultra-high thermal conductivity, easy to operate;

l Low thermal resistance

l Light weight

Typical Applications:

IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop; Communication equipment; Wireless switch; DVD; Hand-held device; Camera/digital camera; Mobile phone



What’s the different between Natural Graphite Sheet & Systhetic Graphite Sheet?

1.Natural graphite sheet color darker than
Systhetic graphite sheet .
2. Natural graphite sheet price lower than Systhetic graphite sheet .
3. Systhetic graphite sheet has less impurities and density ,
thermal conductivity can reach at 1900W / m-K,higher than Natural graphite sheet .
4. Natural graphite sheet is softer.

Physical Properties



Test Item Unit

MG-GT300

Test Value

MG-GT300B

Test Value

MG-GT300B01P

Test Value

Color - Black Black Black
Material - Natural graphite

Graphite sheet

+ Adhesive

Adhesive + graphite sheet

+ PET film

Thickness mm 0.13/0.25/0.5 0.16/0.28/0.53 0.19/0.31/0.56
Continuous use Temp -40~+400 -40~+400 -40~+400
Tensile Strength 4900kpa 715PS 715PS 715PS
Hardness Shore A 80 80 80
Flame Rating - V-0 V-0 V-0

Thermal Conductivity

(vertical direction)

W/m·K 20 15 13

Thermal Conductivity

(horizontal direction)

W/m·K 300 300 300
Standard size: roll size :1000mm*100M, Customized sheet, die-cut form available

Product Pictures

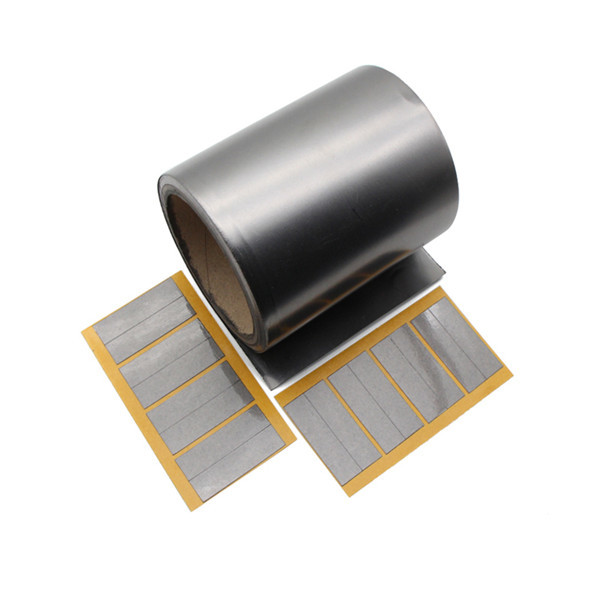

0.1mm Thickness 3 W/M·K Thermal Conductive Pad 0

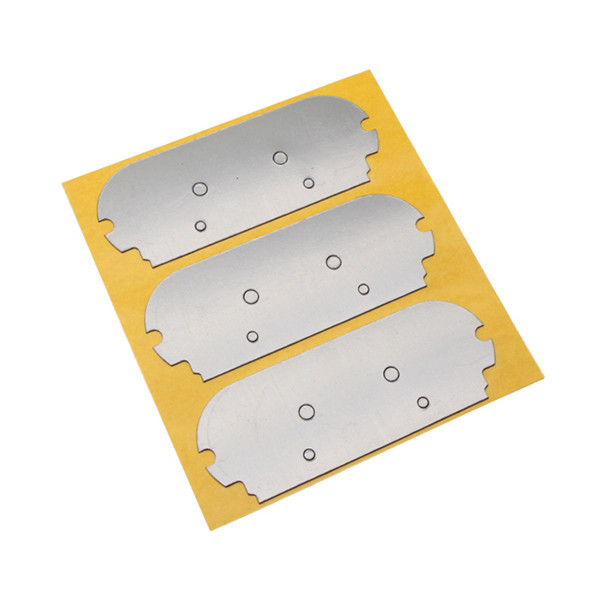

0.1mm Thickness 3 W/M·K Thermal Conductive Pad 1

0.1mm Thickness 3 W/M·K Thermal Conductive Pad 2

Our services
1. 8 years TIMs experiences
2. Professional R&D team
3. One-stop service for thermal conductive material
4. Support customized orders,including size,shape,color, and thermal conductivity or can be coated one side or two sides adhesive or fiberglass according to your demands
5. Free sample provided
6. Manufacturer offers best price
7. Good quality and fast delivery
8. Professional after-sale service
9. Quality system to obtain ISO9001 certification,products meet ROHS,REACH and UL safety standard certification standards
10. Prompt response within 24 hours


0.1mm Thickness 3 W/M·K Thermal Conductive Pad 3

FAQ



Q: What is the size of the product you can supply?

A: Thickness: 0.06mm/ 0.075mm/0.11mm

Jumbo roll size: 500mm X 500m

Log roll size: 500mm X 33m

Slit roll size: We can make the width down to 1mm Custom size is welcomed



Q: May I get samples?

A: Yes, of course.

A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.



Q: How about the price?

A : Polyimide tape manufacturer direct sale price

Also, supply this item in various grades to meet customer demands.



Q: What is your MOQ?

A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.



Q: What should we pay attention to when used it?

A: Just let know application, then we shall offer solutions.
