Shape: | Can Be Customized | Thickness: | 0.13/0.25/0.5mm |
---|---|---|---|
Color: | Black | Hardness: | 80 Shore A |
Tensile Strength: | 715PS 4900kpa | Product Name: | Reinforced Expanded Graphite Gasket Sheet |
Type: | Reinforced Sheet | C Content (%): | 99% |
High Light: | 300W/M.k reinforced graphite gasket,4900kpa reinforced graphite gasket,80 Shore A synthetic graphite sheet |
Thermal Conductivity 20-300W/Mk Roll Size Synthetic Reinforced Expanded Graphite Gasket Sheet
Product Description
M-GR thermal conductivity of graphite is the natural graphite sheet with high thermal conductivity. Which is easy construct. It is flexible and compressible. Also, it can provide a coating (such as insulation requirement) , non-coating, or something wrapped. The applicable temperature extends from -40~400℃(inert environment). Without gas, liquid penetrate, no aging for graphite layer and embitterment, it can be applied into most of the chemical medium. Thermal conductivity of graphite can be custom-made required by clients. It has wide applications, such as integrated circuit, electronic device, high power density computer, conducting cutting-edge electronic instrument and so on. Which enjoys a good market background in mobile phone, computer and electronics industry
Features:
-High thermal performance
-Eliminate hot spots area design
-Flexible enough to comfort to kinds of surfaces
Typical applications:
-LED lighting/Heat sink
-LCD-TV/DVD
Configuration:
-Laminated with metal/plastic to meet mechanical and electrical demands.

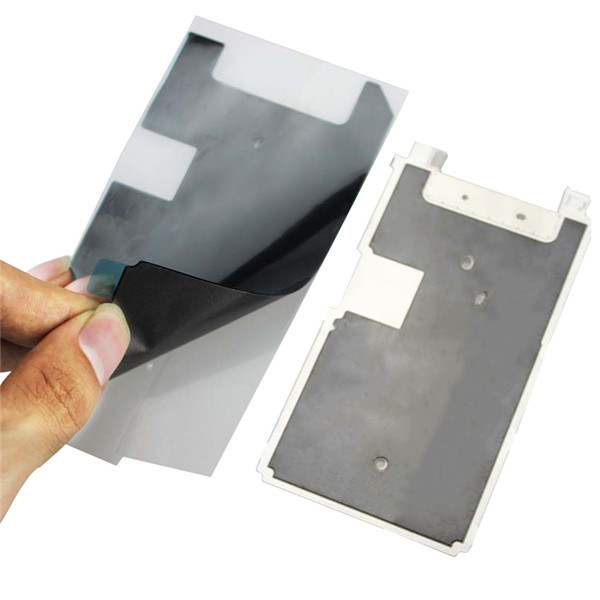

-Adhesive-backed available

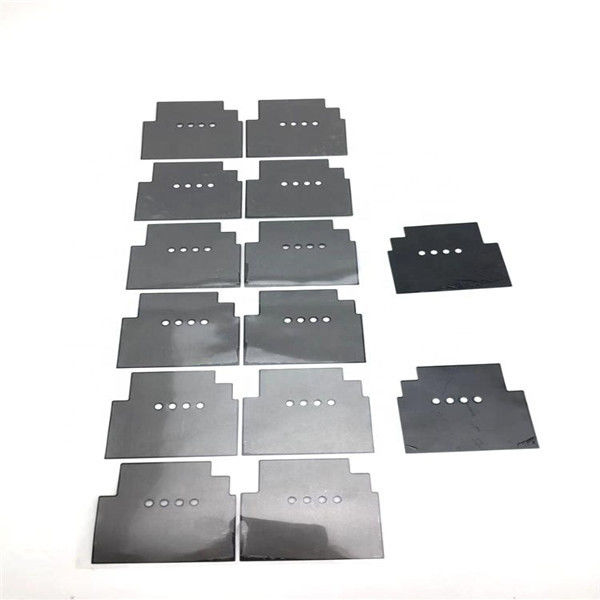

-Pre-cut parts or sheets form
Physical Properties
Typical Properties of M-GR |
|||
Property |
Unit |
Metric Value |
Test Method |
Material |
Graphite |
||
Thickness |
Mm |
0.03-1.5 |
ASTM D374 |
Hardness |
Shore A |
80 |
ASTM D2240 |
Specific Gravity |
g/cc |
1.5 |
ASTM D792 |
Tensil Strength |
4900kpa |
715PS |
ASTM F-152 |
Continuous use Temp |
°C |
-40~+400 |
EN344 |
Electrically |
|||
Volume Resistivity |
ohm.cm |
3.0x1013 |
ASTM D257 |
Flame Rating |
V-0 |
UL 94 |
|
Thermal |
|||
Thermal Conductivity (vertical direction) |
w/m-k |
15 |
ASTM D5470 |
Thermal Conductivity (horizontal direction) |
w/m-k |
400-600 |
ASTM D5470 |
FAQ
Q: What is the size of the product you can supply?
A: Thickness: 0.06mm/ 0.075mm/0.11mm
Jumbo roll size: 500mm X 500m
Log roll size: 500mm X 33m
Slit roll size: We can make the width down to 1mm Custom size is welcomed
Q: May I get samples?
A: Yes, of course.
A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.
Q: How about the price?
A : Polyimide tape manufacturer direct sale price
Also, supply this item in various grades to meet customer demands.
Q: What is your MOQ?
A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.
Q: What should we pay attention to when used it?
A: Just let know application, then we shall offer solutions.
