5.0W/M.K Thermal Conductive Silicone Grease

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS
Model Number: M-TG
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 5~8 Days
Payment Terms: T/T
Supply Ability: 1000 Kilogram/Kilograms per Week
Detail Information
Construction & Compostion: Metal Oxide Filled Silicone Oil Thermal Conductivity: 5.0 W/mK
Evaporation: 0.15% / 200℃@24hrs Color: White Or Gray
Viscosity: 2300K Cps @.25℃ Item: Thermal Conductivity Silicone Grease
Continuous Use Temp: -45~200℃ Classification: Other Adhesives
High Light:

5.0W/mK thermal conductive silicone grease

,

3.3g/cm3 heat conductive grease

,

5.0W/mK thermal compound grease


Product Description

Thermal Grease High Temperature Compound Grease Metal Oxide Filled Silicone Oil



Product Description



    M-TG thermal grease with high thermal conductivity, good lubricity, also has good resistance to high and low temperature performance, low consistency and good workability. This silicone-based products, combined with high thermally conductive fillers, it is non-corrosive, non-toxic, tasteless, which comply with ROHS instruction and the relevant environmental requirements. What’s more, it has huaxia stable physical properties.



Feature

  • Thermal conductivity : 1.5~5.0 W/m-K,
  • Low thermal resistance
  • Good thixotropy and easy to operate

Physical Properties





Property



M-TG



Unit



Test Method



Model



M-TG150



M-TG200



M-TG300



M-TG500







Color



White



Grey



Grey



Grey





Visual



Specific Gravity



2.3



2.7



3.1



3.3

g. cm-3



ASTM D792



Volatile Content



0.57



0.52



0.43



0.35



180℃,3Hrs



ASTM E595



Thermal Conductivity



1.5



2.0



3.0



5.0



W/m-K



ASTM D5470



Thermal Resistance



0.061



0.052



0.04



0.035



℃-in2/W



ASTM D5470



Breakdown Voltage



520



450



390



310



V/mil



ASTM D149



Temperature Range



-40~150



-40~150



-40~150



-40~150





EN344



Volume Resistivity



1013



1013



1013



1013



Ω.cm



ASTM D257



Dielectric Constant



4.1



4.2



4.5



4.7



@1MHZ



ASTM D150



What's application of thermal silicone gel grease?



1·Power supply.

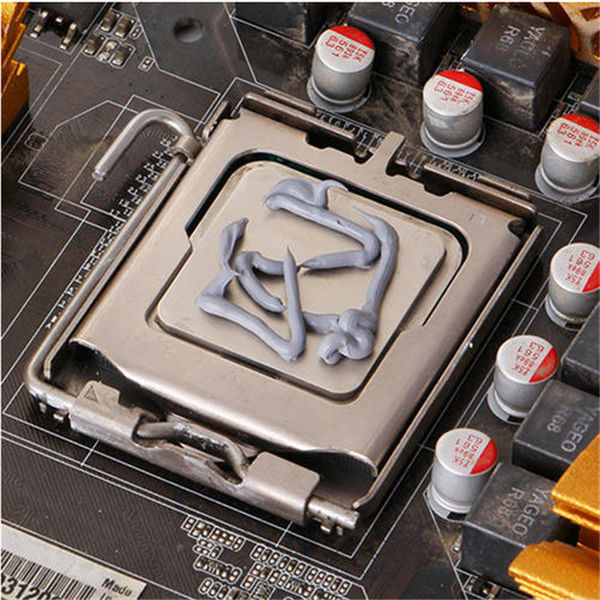

2·Between a CPU and a heat spreader.

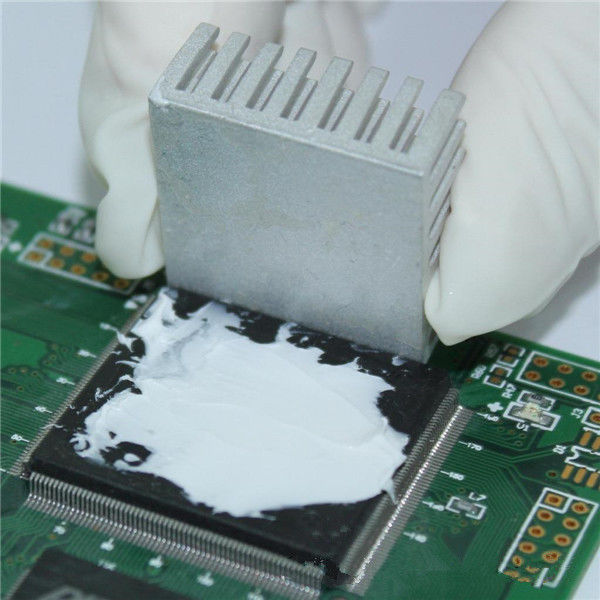

3·Used between a semiconductor and heat sink.

4·Areas where heat needs to be transferred

5·Thermoelectric cooling device.

6 .frame or other type of heat spreader.









5.0W/M.K Thermal Conductive Silicone Grease 0

5.0W/M.K Thermal Conductive Silicone Grease 1



Packing & Shipping

SafepackingPort:
Guangzhou/shenzhen/hongkong
Lead Time :
3-7working days after payment(Except Holiday).
Shippingmethods:
DHL,Fedex,TNT,UPS,Air,Ship,please let us know which methods do you prefer


5.0W/M.K Thermal Conductive Silicone Grease 2

Shipping
5.0W/M.K Thermal Conductive Silicone Grease 3


FAQ

Q1:What's the thermal cunductivity test method given on the data sheet?

 A1:All the data in the sheet tested out by the third partly,ASTM D5470 is utilized to test the thermal conductivity.


Q2:How to find a right thermal conductivity for my application?

A2:It depnds on the watts of power source,ablility of heat dissipation.

Q3:Do you accept custom orders?
Yes,welcome to custom orders.our custom elements including dimesion,shape,color and coated one side or two side adhesive or coated fiberglass.If you want to place a custom order,pls kindly offer a drawing or leave your custom order information.



Q4:Do you offer free samples?

A4:Yes,we are willing to offer free sample but pls kindly note that your side pay for freight.



Q5:How to ship the orders?

A5:We will help to arrange transportation dor you.If you want to use your own courier account pls kindly tell us before shipping out.



Q6:What's the lead time?

A6:Sample order costs 1~3 workdays and 3~5 workdays for production.
