REACH 0.25mm Thickness Thermal Silicone Pad For Cell Phone

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,UL,REACH
Model Number: M-TP300
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7Days
Payment Terms: T/T
Supply Ability: 100000Pieces/Day
Detail Information
Material: Silicone Application: High Temperature
Color: Blue,Grey Thickness: 0.25mm~15mm
Product Name: Thermal Conductive Pad Silicone Dielectric Thermal Pad Feature: Electrical Performence
Dielectric Breakdown Voltage: ≥200Vac/mil Sample: Freely Supplied
High Light:

0.25mm thickness Thermal Silicone Pad

,

0.25mm thickness thermal rubber pad

,

REACH thermal rubber pad


Product Description

Silicone Thermally Conductive Strip Thermal Silicone Pad For Cell Phone



Product Description




Thermal conductive silicone pad

Item

M-TP300

Rated voltage

220V

Materials

Thermal silica

Color

Grey/Blue/Black/Pink

Thickness

0.2-16mm

Hardness

18±5~40±5

Advantage

Thermal/insulation/self-adhesive

Conductivity

1W-6W



Product Advantages

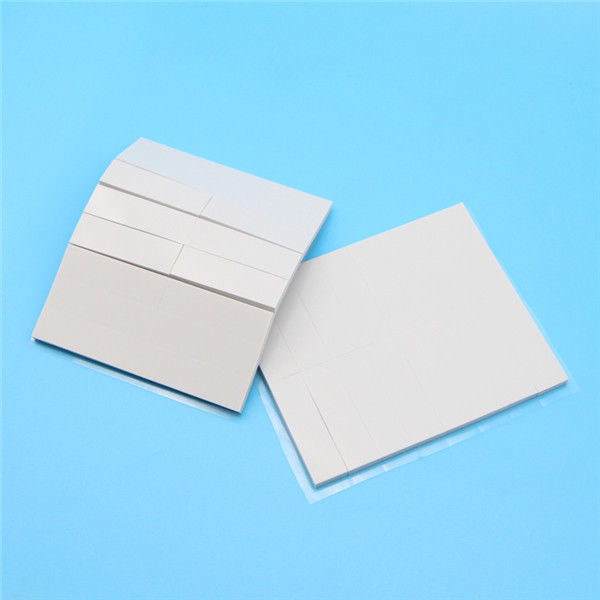

REACH 0.25mm Thickness Thermal Silicone Pad For Cell Phone 0



Good gap filler(Thermal silica film)



Because air is a bad conductor of heat, it will seriously hinder the transfer of heat between the contact surfaces, and the addition of a thermal silica film between the heat source and the heat sink can push the air out of the contact surface.



High thermal conductivity(Thermal silica film)

The soft thermal silica sheet is designed from an engineering perspective. How to match the irregular surfaces of the material, using high-performance insulating and heat-conducting materials to eliminate air gaps, thereby improving the overall thermal conversion capability and enabling the device to operate at lower temperatures. The thermal conductivity of the thermal silica sheet is regulatable and the thermal conductivity is also better.

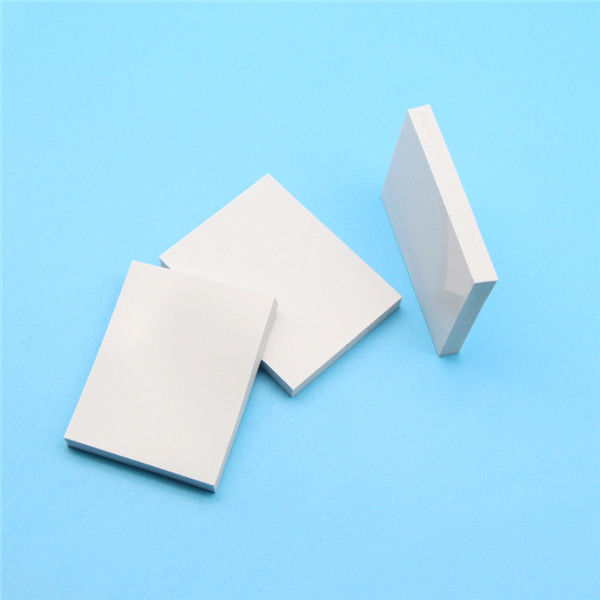

REACH 0.25mm Thickness Thermal Silicone Pad For Cell Phone 1

Powerful performance(Soft, insulating, self-adhesive)

Has a certain degree of flexibility, excellent insulation, compressibility, natural surface tackiness, but also plays a role in insulation, shock absorption, sealing, etc., can meet the design requirements of equipment miniaturization and ultra-thin, is highly process With its wide application range and wide range of thickness, it is an excellent thermal conductive filler material that is widely used in electronic and electrical products. The main features: insulation, thermal conduction, wear, flame retardant, fill gap, anti-compression, buffer, etc.



REACH 0.25mm Thickness Thermal Silicone Pad For Cell Phone 2

Custom size, easy to use(Thermal silica film)

The size of the thermal silicone gasket can be cut according to the customer's requirements, and the special size can be die-cut. Easy to install. The manufacturer is convenient for mass production and the delivery period is stable.



Physical Properties




Test Item

Test Method

Unit

Test Value

Color

Visual

-

Grey/Black/Blue/Pink

Thickness

ASTM D374

Mm

0.25 to 20.0

Continous Use Temp

EN344


-40 to +220

Volume Resistivity

ASTM D257

Ω-CM

1.0*1011

Breakdown Voltage

ASTM D149

KV/mm

4

Flame Rating

UL-94

-

V-0

Conductivity

ASTM D5470

w/m-k

1.0-7.0



Product Details



REACH 0.25mm Thickness Thermal Silicone Pad For Cell Phone 3

REACH 0.25mm Thickness Thermal Silicone Pad For Cell Phone 4



FAQ



Q1: What's the thermal conductivity test method given on the data sheet ?

A1: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.

Q2: How to find a right thermal conductivity for my
application ?
A2: It depends on the watts of power source , ability of heat dissipation .

Q3: Do you accept custom orders ?
A3:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q4: Do you offer free samples ?
A4: Yes, we are willing to offer free sample but pls kindly note that your side pay for freight .

Q5: How to ship the orders ?
A5: We will help to arrange transportation for you . If you want to use your own courier account pls
kindly tell us before shipping out.

Q6: What's the leading time ?
A6: Sample order costs 1~3 workdays and 3~7 workdays for mass production.
