| Place of Origin: | Guangdong,China |
|---|---|
| Certification: | ROHS,UL,REACH |
| Model Number: | M-TP1500 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Packed in Carton |
| Delivery Time: | 3~7Days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000Pieces/Day |
| Product Name: | Thermal Conductive Pad Silicone Dielectric Thermal Pad | Feature: | Electrical Performence |
|---|---|---|---|
| Application: | High Temperature | Material: | Silicone |
| Sample: | Sample Avaliable | Type: | Insulation Sheet |
| Color: | Blue,Pink,Grey | Size: | 200*400mm. Customized Accepted |
| High Light: | 15W/m.K Thermal Conductive Silicone Pad,15MPa Thermal Cooling Pad,15W/m.K Thermal Cooling Pad |
||

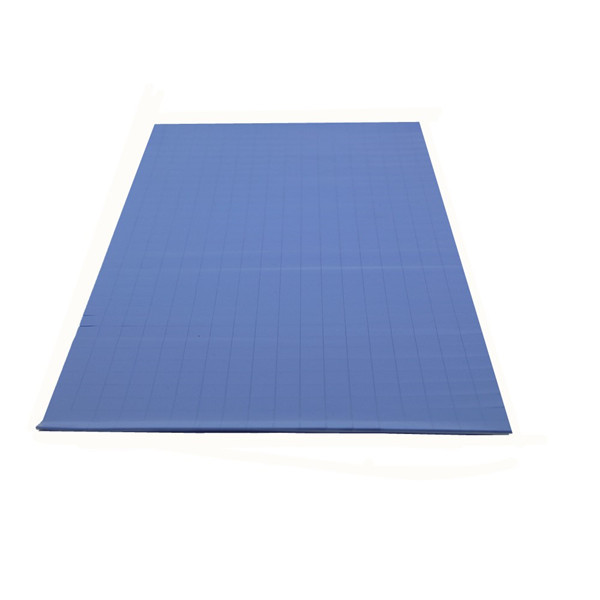

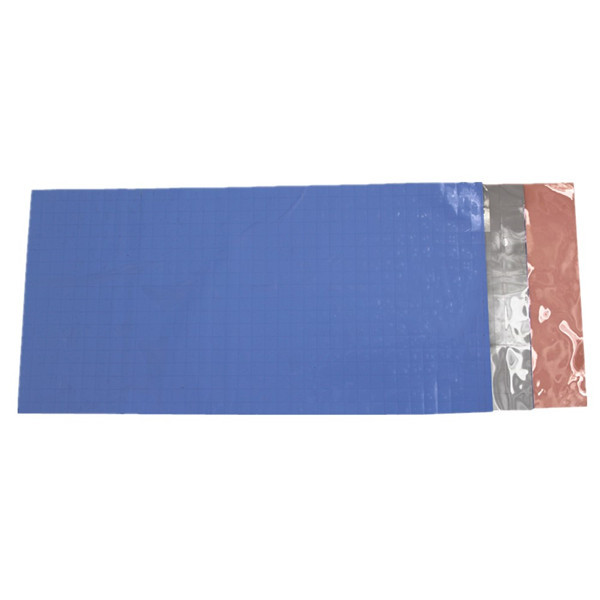

15W/m.K Thermal Conductivity Cooling Pad Soft Silicone Heat Pad For Projector
M-TP1500 is using soft silicone material heat-conducting, stable insulation performance, use in transmission interface between the electronic equipment and heat sink, which achieve heat transfer and insulation effect.
Applications
1.LED lighting, lighting equipment
2.Household appliances LCD display
3.Between semiconductor and heat sink
4.Communication product, smart phone, tablet .
5.Desktop, notebook and other portable computer
6.Large power supply etc.
Performance and characteristics
1.High thermal conductivity, heat transfer coefficient 15W/m-k
2.Stable performance, low thermal resistance, effectively improve the heat transfer speed
3.Low hardness, its viscosity high, easy to use
4.V-O certification standards
|
Model |
M-TP1500 | Test Method |
|
Colors |
Gray,blue,light gray | Visual |
|
Thickness |
1.0-5mm | ASTM D751 |
|
Density |
4.0 g/cc | ASTM D297 |
|
hardness |
45+-5 Shore A | ASTM D2240 |
|
Tensile strength |
15 | ASTM D412 |
|
Continuous use temp(°F/℃) |
(-58 to 392 °F)(-58 to 200 ℃) | *** |
|
Breakdown voltage (V) |
>3000(Thickness≤0.5mm) >5000(Thickness≥0.5mm |
ASTM D149 |
|
Dielectric constant |
15.0 M HZ | ASTM D150 |
|
Volume Resistivity (Ohm.cm) |
1012 | ASTM D257 |
|
Flame rating |
94-V0 | Equivalent |
|
Thermal conductivity |
15.0 W/m-K | ASTM D5470 |
|
Can add fiberglass |
Every thickness can add fiberglass,marked by FG | |
|
Online Services:24 hours,Inquiry reply within fastest. |
|
Well- Trained & Experienced Staff are to answer all your requirements. |
|
Standard Export Carton Or Marked With Customer's Information Or Customized. |
|
Sample Order delivered within 24 hours. |
Packaging & Shipping
-Packaging:Export Standard Packing
-Shipping:TNT/UPS/EMS/DHL/FedEx
-Delivery Time :3-5 days
Q1: What's the thermal conductivity test method given on the data sheet ?
