1.3g/Cc 1.0W/M.K Heat Conductive Rubber Pad

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,UL,REACH
Model Number: M-TP100
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7Days
Payment Terms: T/T
Supply Ability: 1000000Pieces/Day
Detail Information
Sample: Sample Avaliable Size: 200*400mm. Customized Accepted
Flame Rating: 94 V-0 Continuous Use Temp: -60 To 200℃
Color: White,Blue,Grey Application: CPU,LED,Other
Material: Silicone Type: Silicone Thermal Pad
High Light:

1.0W/M.K heat conductive rubber pad

,

1.0W/M.K thermal foam pads

,

1.3g/cc silicone thermal pad


Product Description

1.0W/M.K Very Soft Thermal Conductive Silicone Pad for Electronic Devices

Product Dscription

Thermally conductive silicone pad are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Product properties


Test items

M-TP100

Unit

Test method

Color
Grey
/

Visual

Thickness

0.3~10.0

mm

ASTM D374

Specific gravity

1.3±0.1

g/cc

ASTM D792

Hardness

30±5

Shore C

ASTM D2240
Tensile strength

8

kg/cm2

ASTM D412

5.88*109

Pa

ASTM D412

Temperature range

-40~+220


EN344

Volume resistivity

1.7*1013

Ω.cm

ASTM D247

Voltage resistance

>4.0

kv/mm

ASTM D149

Flame retardance

V0
/

UL-94

Thermal conductivity

1.0

w/m.k

ASTM 5470



Product features

High thermal conductivity, high reliability
High compressibility, soft and elastic
Natural viscosity, no need surface adhesive agent
Meet ROHS and UL environmental and safety requirements

Product application

Computer heat dissipation module
Display card cooling module
Network communication equipment
Power module
High speed large storage drive, hard drive, DVD drive
Power conversion equipment
Automobile engine control unit
Flat display screen, LED lighting, PDP display, LCD backlight module

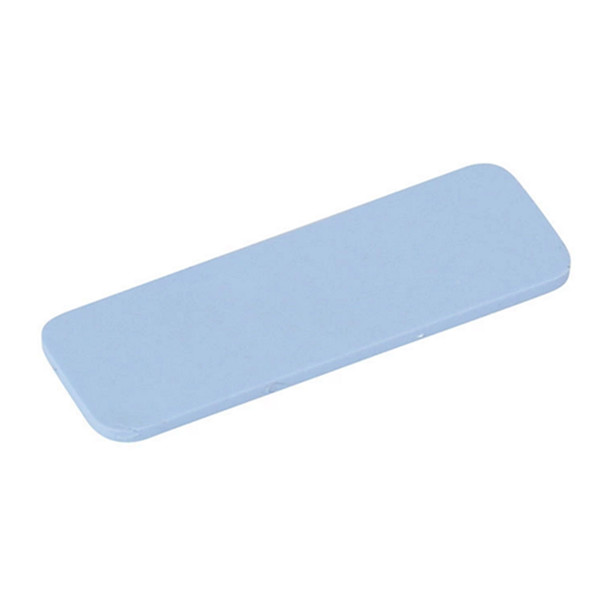

1.3g/Cc 1.0W/M.K Heat Conductive Rubber Pad 0

Product Details

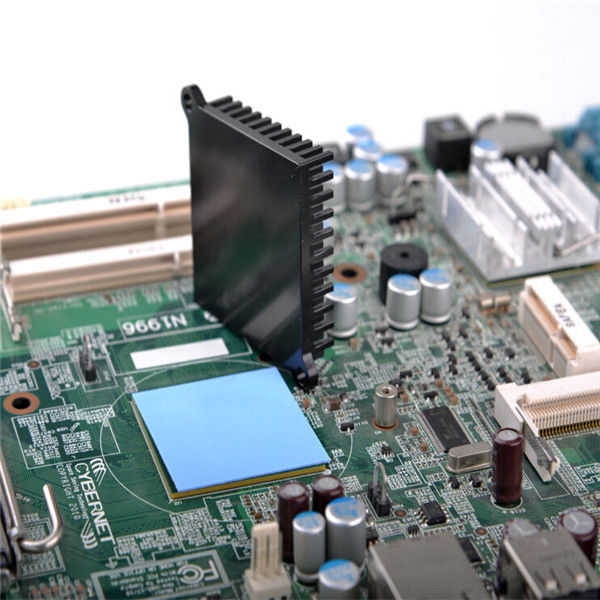

1.3g/Cc 1.0W/M.K Heat Conductive Rubber Pad 1

1.3g/Cc 1.0W/M.K Heat Conductive Rubber Pad 2



Our services





1. Professional R&D team



2. One-stop service for thermal conductive material



3. Support customized orders,including size,shape,color, and thermal conductivity or can be coated one side or two sides adhesive or fiberglass according to your demands



4. Free sample provided



5. Manufacturer offers best price



6. Good quality and fast delivery



7. Professional after-sale service



8. Quality system to obtain ISO9001 certification,products meet ROHS,REACH and UL safety standard certification standards



9. Prompt response within 24 hours



Packaging & Shipping



1.3g/Cc 1.0W/M.K Heat Conductive Rubber Pad 3

FAQ



Q1: What's the thermal conductivity test method given on the data sheet ?

A1: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.

Q2: How to find a right thermal conductivity for my
application ?
A2: It depends on the watts of power source , ability of heat dissipation .

Q3: Do you accept custom orders ?
A3:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q4: Do you offer free samples ?
A4: Yes, we are willing to offer free sample but pls kindly note that your side pay for freight .

Q5: How to ship the orders ?
A5: We will help to arrange transportation for you . If you want to use your own courier account pls
kindly tell us before shipping out.

Q6: What's the leading time ?
A6: Sample order costs 1~3 workdays and 3~7 workdays for mass production.
