Feature: | Electrical Performence | Sample: | Sample Avaliable |
---|---|---|---|
Size: | 200*400mm. Customized Accepted | Thickness: | 0.25mm~15mm |
Material: | Silicone Base, Fiberglass Base | Application: | High Voltage |
Color: | Grey | Breakdown Voltage: | >5000(>0.5mm) |
Conductivity: | 7.0W/M-K | ||
High Light: | 7.0W/M.K Thermal Conductive Silicone Pad,3.25g/Cm³ heat conductive pad,7.0W/M.K silicone heat sink pad |
1.0W/M.K-10.7W/M.K Soft Fiberglass Silicone Thermal Conductive Pad
Product Description

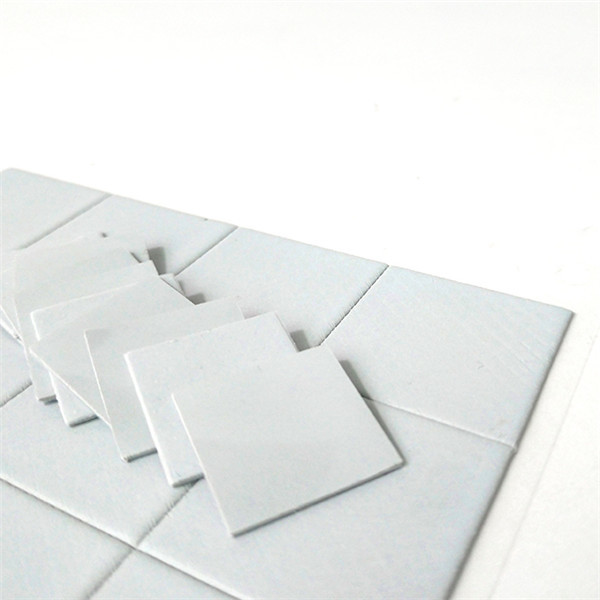

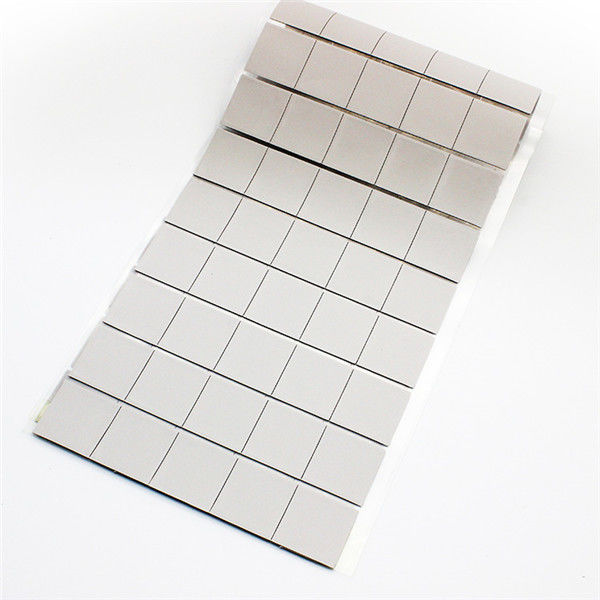

High Thermal Conductive Silicone Pad
High thermal conductive silicone pad is a high thermal conductivity material. The raw material is made of Japan Electrochemical High Thermal Conductive Spherical Alumina Powder and Dow Corning Polymer. It is a cost-effective thermal gap filling material. The surface's natural micro-viscosity and softness can well fill the air gaps to transfer the heat between the heat source and the heat sink to improve heat dissipation and improve the efficiency of heating electro-nic components and service life. It is an ideal thermal interface material.
Features & Benefits
l Cost-effective, high conductivity, low thermal resistance
l Soft and flexible, reducing the interface thermal resistance
l High electrical insulation to protect electronic devices
l Natural sticky, easy application, reworkable
l Meet ROHS and UL environmental requirements
Typical Applications
l High thermal conductivity module
l new energy vehicles
l Microprocessors, memory chips and graphics processors
l Network communication equipment
l Car equipment, charger
l High-speed hard disk drive
Physical Properties
Property |
M-TP700 |
Unit |
Tolerance |
Test Method |
Composition |
Filled silicone elastomer |
— |
||
Color |
Dark grey |
— |
— |
Visual |
Thermal conductive |
7.0 |
W/m.K |
±10% |
ASTM D5470 |
Thickness |
20~400(1mil=0.0254mm) |
mil |
±10% |
ASTM D374 |
0.5~10 |
mm |
ASTM D374 |
||
Hardness |
55~90 |
Shore 00 |
— |
ASTM D2240 |
Density |
3.25 |
g.cm-3 |
— |
— |
Temperature Range |
-40~+150 |
℃ |
— |
— |
Breakdown Voltage |
>5000(>0.5mm) |
V |
— |
ASTM D149 |
Profuct Usages
Packaging & Shipping
Q1: What's the thermal conductivity test method given on the data sheet ?
