Sample: | Sample Avaliable | Size: | 200*400mm. Customized Accepted |
---|---|---|---|
Thickness: | 0.1mm-10mm | Flame Rating: | 94 V-0 |
Continuous Use Temp: | -50 To 200℃ | Conductivity: | 1.2-8W/M-K |
Product Name: | Factory Produce Thermal Pad Price | Color: | Blue,Pink,Grey |
High Light: | 2g/cm3 silicone rubber heating pad,2g/cm3 high temperature silicone sheet,ROHS high temperature silicone sheet |
Sublimation Thermal Conductivity Silicone Rubber Heating Pad/Sheet
Product Description
Product Name
|
Silicone Thermal Pad
|
Material
|
Silicone
|
Function
|
Heat dissipation
|
Package
|
According to customer requirements
|
* Flat panel TV, mobile equipment, high-speed hard disk drive
Properties |
Units
|
TP120 |
TP150 |
TP200 |
TP250 |
TP300 |
Test method
|
Color
|
/
|
White Grey |
White Grey |
Grey |
Orange
|
Blue |
Visual
|
Thermal impedance(@1mm/20Psi)
|
℃in2/W |
0.8 |
0.7 |
0.5 |
0.47
|
0.42 |
ASTM D792
|
Specific gravity
|
g/cm3 |
1.8 |
2 |
2.4 |
2.9
|
3 |
ASTM D792
|
Volume resistivity |
ΩCM |
5.0x1013Ω |
5.0x1013Ω |
2.61013Ω |
1.5x1013Ω |
1.0x1014Ω |
ASTM D257 |
Thermal conductivity |
W/mK |
1.2 |
1.5 |
2 |
2.5 |
3 |
ASTM D5470 |
Breakdown Voltage |
KV/mm |
≥10 |
≥10 |
≥10 |
≥10 |
≥9 |
ASTM D149 |
Dielectric Constant@1MHz |
@1MHZ |
5.5 |
5.5 |
6 |
5.5 |
5.6 |
ASTM D150 |
Thickness(±10%) |
MM |
0.2~10 |
0.2~10 |
0.2~10 |
0.3~5.0 |
0.3~5.0 |
ASTM D374 |
Hardness
|
Shore 00
|
35/55 |
35/55 |
35/55 |
35/55 |
35/55 |
ASTM D2240
|
Flammability class |
/ |
UL94-VO |
UL94-VO |
UL94-VO |
UL94-VO |
UL94-VO |
UL94 |
Application temperature
|
℃ |
-50~+200 |
-50~+200 |
-50~+200 |
-50~+200 |
-50~+200 |
***
|

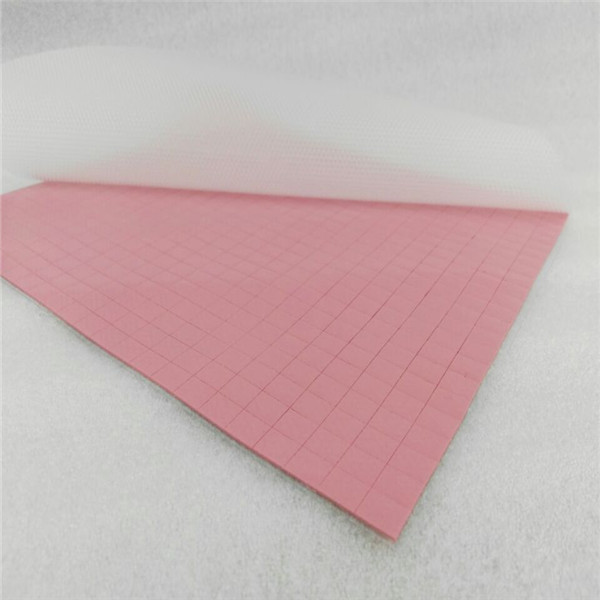

Product Details
Packaging & Shipping
Silicone Pad Packaging
Silicone Pad Shipping
Q1: What's the thermal conductivity test method given on the data sheet ?
