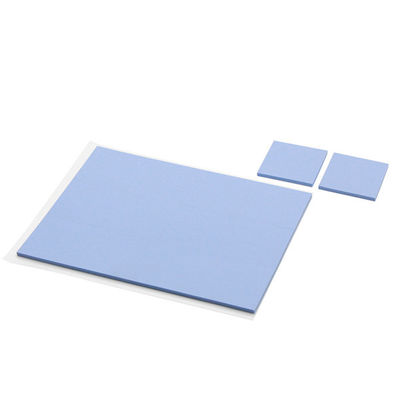

2.7g/Cm³ Thermal Conductive Silicone Pad

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,UL,REACH
Model Number: M-TP200
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7Days
Payment Terms: T/T
Supply Ability: 10000Pieces/Day
Detail Information
Rated Voltage: 6Kv/ac Material: Thermal Interface Pad
Product Name: Factory Produce Thermal Pad Price Color: Blue
Sample: Free Sample Tensile Strength: Excellent
Usage: Insulation Cooling,Electronics Etc Conductivity: 1.0-10.0W/M-K
High Light:

6Kv/ac Thermal Conductive Silicone Pad

,

2.7g/Cm³ silicone cooling pad

,

6Kv/ac silicone cooling pad


Product Description

China Manufacturer High Quality Custom Thermal Conductive Silicone Pad

Product Description



    M-TP200 Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components. Thermal pads are designed to conduct heat and help by conforming to uneven surfaces. They also help cushion items prone to breakage,and for thermal gap filler and thermal conductive purpose.



Features



-Thermal conductivity: 2.4 w/m-k

-Size available: 200mm x 400mm, 300mm x 300mm, special size could be provided

-Low stress application

-Electrical isolating

-Flame retarding: V-0



Application



1. Communicaiton equipment

2. Mobile, video, networking equipment

3. PC server/ work station

4. LED lighting, backlight module, LCD-TV, CD/ROM-DVD cooling



Application Mode



1. Filling between PCB and heat sink



2. Filling between IC and heat sink or outer cover



3. Filling between IC and other cooling material



Shelf Life



Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.

AVAILABLE SIZES

SIZE: Maximum 200MM X 400MM. (Can be Customized)

Custom Sizes: If you need customized sizes or die cut parts please feel free to contact NKS sales representative.



Physical Properties





Property



M-TP200



Unit



Tolerance



Test Method



Composition



Filled silicone elastomer





Color



Blue







Visual



Thermal conductive



2.0



W/m.K



±10%



ASTM D5470

Thickness



12~400(1mil=0.0254mm)



mil

±10%



ASTM D374



0.3~10



mm



ASTM D374



Hardness



40~80



Shore 00





ASTM D2240



Density



2.7



g.cm-3







Temperature Range



-40~+200







Breakdown Voltage



>3000(0.25mm~0.5mm)

V ASTM D149



>5000(>0.5mm)



Flame Rating



UL 94 V-0







UL 94



Product Details



2.7g/Cm³ Thermal Conductive Silicone Pad 0

2.7g/Cm³ Thermal Conductive Silicone Pad 1

Packaging & Shipping



2.7g/Cm³ Thermal Conductive Silicone Pad 2



FAQ



Q1: What's the thermal conductivity test method given on the data sheet ?

A1: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.

Q2: How to find a right thermal conductivity for my
application ?
A2: It depends on the watts of power source , ability of heat dissipation .

Q3: Do you accept custom orders ?
A3:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q4: Do you offer free samples ?
A4: Yes, we are willing to offer free sample but pls kindly note that your side pay for freight .

Q5: How to ship the orders ?
A5: We will help to arrange transportation for you . If you want to use your own courier account pls
kindly tell us before shipping out.

Q6: What's the leading time ?
A6: Sample order costs 1~3 workdays and 3~7 workdays for mass production.
