0.5mm Thickness Thermal Conductive Silicone Pad

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,UL,REACH
Model Number: M-TP500
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7Days
Payment Terms: T/T
Supply Ability: 10000Pieces/Day
Detail Information
Product Name: Thermal Conductive Pad Silicone Dielectric Thermal Pad Type: Silicone Thermal Pad
Application: High Temperature,CPU,LED Material: Silicone
Tensile Strength: Excellent Thermal Conductivity: 1W/mk-10W/mk
Thickness: 0.2-20mm Feature: Electrical Performence
High Light:

0.5mm thickness Thermal Interface Pad

,

40 shore 00 cpu thermal pad

,

0.5mm thickness thermal foam pads


Product Description

Thermal Interface Material Conductive Silicone Pad For Power Battery


Product Description

    Thermal conductive silicone piece has certain flexibility, excellent insulation, compressibility, surface viscosity and natural design specifically for the use of transfer heat crack production and could fill the gap, to complete the heat transfer between the heating parts and cooling parts, but also play a role insulation, shock absorption, etc, can satisfy the design requirements of equipment miniaturization and ultra-thin, is extremely manufacturability and practicability, applicability is wide and thickness, is an excellent thermal conductive filler material is widely used in electrical and electronic products.

Product properties




Property



M-TP500



Unit



Tolerance



Test Method



Composition



Filled silicone elastomer





Color



Off-white







Visual



Thermal conductive



5.0



W/m.K



±10%



ASTM D5470

Thickness



20~400(1mil=0.0254mm)



mil

±10%



ASTM D374



0.5~10



mm



ASTM D374



Hardness



40-80



Shore 00





ASTM D2240



Density



3.15



g.cm-3







Temperature Range



-40~+200







Breakdown Voltage



>3000(0.3mm~0.5mm)

V ASTM D149



>5000(>0.5mm)



Flame Rating



UL 94 V-0







UL 94



Dielectric Constant



12.6



MHz





ASTM D150

Product application

Computer heat dissipation module
Display card cooling module
Network communication equipment
Power module
High speed large storage drive, hard drive, DVD drive
Power conversion equipment
Automobile engine control unit
Flat display screen, LED lighting, PDP display, LCD backlight module



Product Details

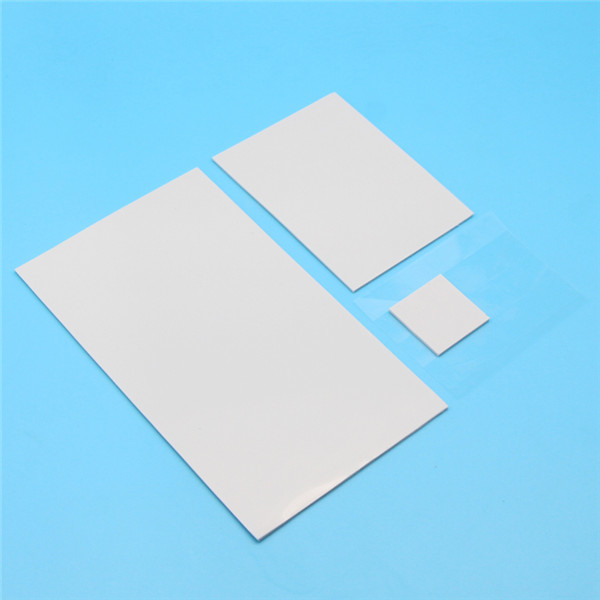

0.5mm Thickness Thermal Conductive Silicone Pad 0

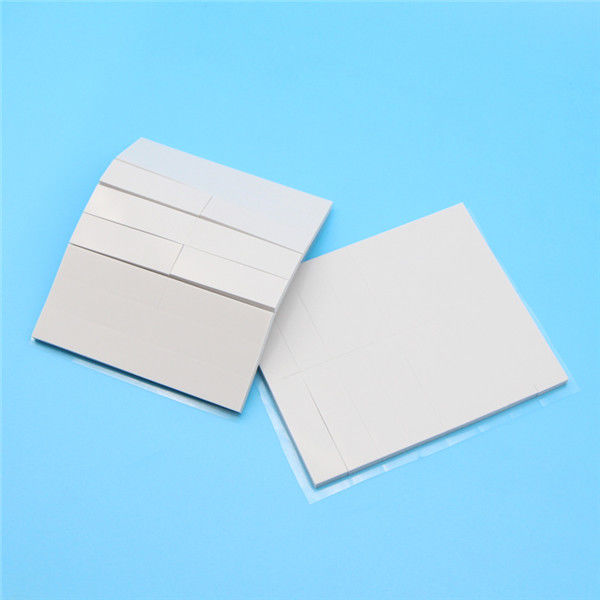

0.5mm Thickness Thermal Conductive Silicone Pad 1

Main application



0.5mm Thickness Thermal Conductive Silicone Pad 2



Packaging & Shipping



0.5mm Thickness Thermal Conductive Silicone Pad 3

FAQ



Q1: What's the thermal conductivity test method given on the data sheet ?

A1: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.

Q2: How to find a right thermal conductivity for my
application ?
A2: It depends on the watts of power source , ability of heat dissipation .

Q3: Do you accept custom orders ?
A3:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q4: Do you offer free samples ?
A4: Yes, we are willing to offer free sample but pls kindly note that your side pay for freight .

Q5: How to ship the orders ?
A5: We will help to arrange transportation for you . If you want to use your own courier account pls
kindly tell us before shipping out.

Q6: What's the leading time ?
A6: Sample order costs 1~3 workdays and 3~7 workdays for mass production.
