| Place of Origin: | Guangdong,China |
|---|---|
| Certification: | ROHS,UL,REACH |
| Model Number: | M-TP200 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Packed in Carton |
| Delivery Time: | 3~7Days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000Pieces/Day |
| Conductivity: | 2W/M-K | Rated Voltage: | 6KV |
|---|---|---|---|
| Color: | Blue,Pink | Size: | Customized Size |
| Type: | Silicone Thermal Pad | Usage: | CPU,Electronics Etc |
| Product Name: | Thermal Conductive Pad Silicone Dielectric Thermal Pad | Feature: | Electrical Performence |
| High Light: | 25 Shore C cpu thermal pad,4KV/mm Thermal Conductive Silicone Pad,25 Shore C thermal graphite sheet |
||
Thermal Pad CPU/Graphics Card Silicon Sheet Thermal Conductive Pad
Product Description
Thermal silicone pad with certain flexibility, good insulation,compression,and natural surface tack,is special for transferring the heat via the gap.It can fill in the gap and transfer the heat between the heating part and heat dissipation part .With the wide range of thickness,it can satify the miniaturization and super thin equipment.It is widely use for electronic produce because it isgood thermal fillers.
Physics parameter form
|
Test Item |
Test Method |
Unit |
TP200 Value |
|
Color |
Visual |
Blue |
|
|
Thickness |
ASTM D374 |
mm |
0.15~20 |
|
Specific Gravity |
ASTM D792 |
g/cc |
2.4±0.1 |
|
Hardness |
ASTM D2240 |
Shore C |
25±5 |
|
Tensile Strength |
ASTM D412 |
(Pa) |
5.7*108 |
|
Compressibility |
ASTM D412 |
% |
30 |
|
Temperature Range |
EN344 |
℃ |
-40~+150 |
|
Volume Resistivity |
ASTM D257 |
Ω-CM |
1.0*1011 |
|
Breakdown Voltage |
ASTM D149 |
KV/mm |
4 |
|
Flame Rating |
UL-94 |
V-0 |
|
|
Thermal Conductivity |
ASTM D5470 |
w/m-k |
2.0 |
Application mode

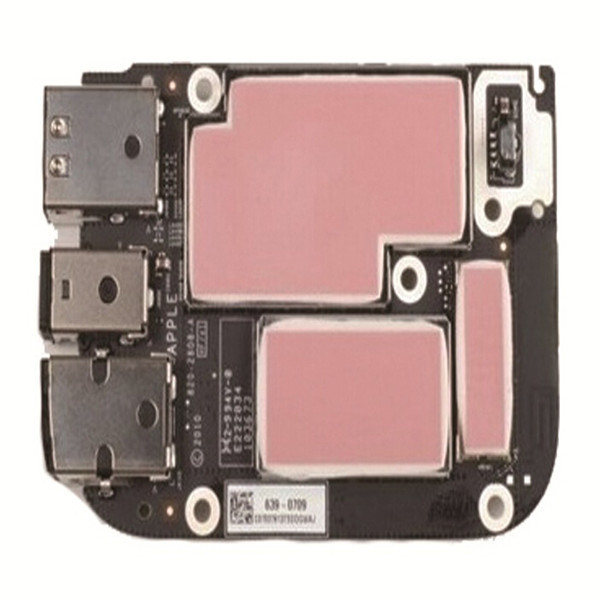

1. Fill between the circuit board and thermal slug

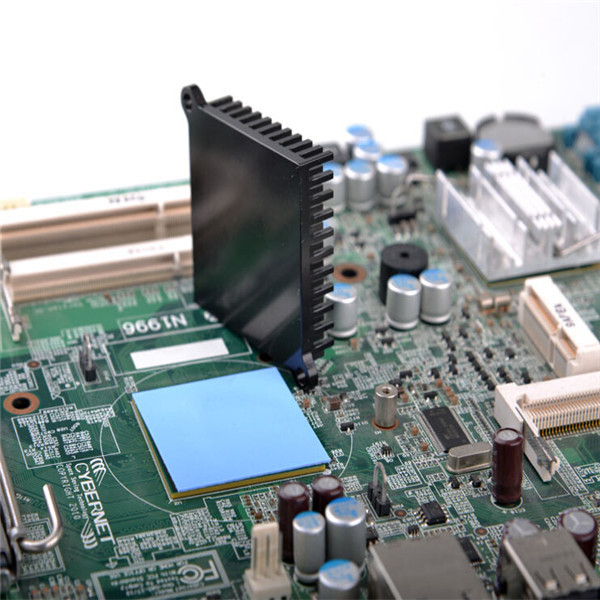

2. Fill between IC and thermal slug or the product shell
3. Fill between IC and heat dissipation material ( such as metallic shield)
Product application
Thermal silicone pad is widely used for all kinds of high power supply, laptop, LED light, smartphone, power battery, electronic industry and so on.
|
Our services |
|
1. Professional R&D team |
|
2. One-stop service for thermal conductive material |
|
3. Support customized orders,including size,shape,color, and thermal conductivity or can be coated one side or two sides adhesive or fiberglass according to your demands |
|
4. Free sample provided |
|
5. Manufacturer offers best price |
|
6. Good quality and fast delivery |
|
7. Professional after-sale service |
|
8. Quality system to obtain ISO9001 certification,products meet ROHS,REACH and UL safety standard certification standards |
|
9. Prompt response within 24 hours |
Packaging & Shipping
