0.25℃ In2/W 2.75g/Cm3 Thermally Conductive Silicone Paste

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS
Model Number: M-TG
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 5~8 Days
Payment Terms: T/T
Supply Ability: 1000 Kilogram/Kilograms per Week
Detail Information
Main Raw Material: Polysiloxane Usage: Electronic Technology
Color: Gray Density: 2.75±0.20
Thermal Conductivity: 3.10±0.31 W/m K Product Name: Thermal Grease
Continuous Use Temp: -55~200℃ Shelf Life: 24 Months
High Light:

2.75g/cm3 thermal compound grease

,

0.25℃ in2/W thermal conductive paste

,

0.25℃ in2/W silicone thermal paste


Product Description

Polysiloxane And Supplemented High Thermal Conductivity Material Silicone Grease



Product Description



    M-TG thermal grease with high thermal conductivity, good lubricity, also has good resistance to high and low temperature performance, low consistency and good workability. This silicone-based products, combined with high thermally conductive fillers, it is non-corrosive, non-toxic, tasteless, which comply with ROHS instruction and the relevant environmental requirements. What’s more, it has huaxia stable physical properties.



Physical properties





Product name



thermal silicone grease



Appearance



White/Grey paste solid



Density



2.5g/ml



Fugitive Constituent



0.2



Penetration Degree



180~210



Thermal conductivity (W/(m.K))



1.0



Oil-sever Percentage (150℃, 24h)



1.0



Thermal resistance (℃ in2/W, 0.1mm 80psi)



0.25



Volume Resistivity (Ω.cm)



3.0×1015



Dielectric strength (KV/mm)



22



Permittivity (F/m)



3.2



Dielectric loss factor (1 MHz)



0.003



Working temperature (℃)



-50~200

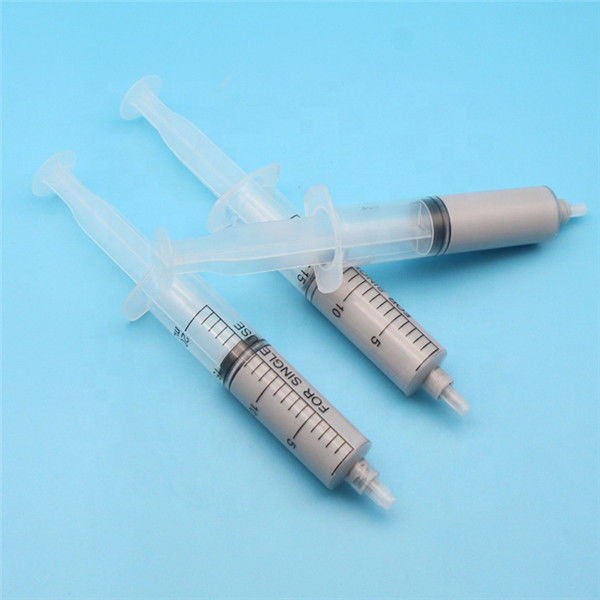

0.25℃ In2/W 2.75g/Cm3 Thermally Conductive Silicone Paste 0

Key Features



1.Innocuous,smell-less and non-corrosive
2.Excellent electrical insulating ability,perfect heat conductivity and low oil-sever percentage.
3.Thermostable aging-resistant,stable chemical property.
4.Can be used for longtime at the temperature between -50°C and +200°C.
5.Convenient to use and coating proedure is simple.

Product Details

0.25℃ In2/W 2.75g/Cm3 Thermally Conductive Silicone Paste 10.25℃ In2/W 2.75g/Cm3 Thermally Conductive Silicone Paste 2

Packing & Shipping

0.25℃ In2/W 2.75g/Cm3 Thermally Conductive Silicone Paste 3

FAQ

Q1:What's the thermal cunductivity test method given on the data sheet?

 A1:All the data in the sheet tested out by the third partly,ASTM D5470 is utilized to test the thermal conductivity.


Q2:How to find a right thermal conductivity for my application?

A2:It depnds on the watts of power source,ablility of heat dissipation.

Q3:Do you accept custom orders?
Yes,welcome to custom orders.our custom elements including dimesion,shape,color and coated one side or two side adhesive or coated fiberglass.If you want to place a custom order,pls kindly offer a drawing or leave your custom order information.



Q4:Do you offer free samples?

A4:Yes,we are willing to offer free sample but pls kindly note that your side pay for freight.



Q5:How to ship the orders?

A5:We will help to arrange transportation dor you.If you want to use your own courier account pls kindly tell us before shipping out.



Q6:What's the lead time?

A6:Sample order costs 1~3 workdays and 3~5 workdays for production.
