Insulated 10.4Mpa 2.1g/Cm3 Heat Conductive Rubber Pad

Basic Information
Place of Origin: China
Certification: ROHS,UL,REACH
Model Number: LM-PCM
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7 Work days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detail Information
Material: Composite Polymer Rated Voltage: 220V
Colors: Green,Geryv Usage: Insulation Protection
Name: Phase Change Material Application: High Temperature,temperature-control Systems
Tensile Strength: 10.4Mpa Thermal Conductivity: 1.0-2.5w/m-k
High Light:

10.4Mpa thermal rubber pad

,

10.4Mpa silicone cooling pad

,

2.1g/cm3 heat conductive rubber pad


Product Description

New Type Thermal Material Phase Change Material For Electronic Equipment



 Product Brief



This material is heat reinforced polymer, to meet the thermal conductive of high terminal heat conduction application , reliability demand. Combined with the thermal resistance small channel so that the performance of the heat sink to achieve the best. Improve the micro processor, memory module DC - DC converter and the reliability of the power module.The phase change characteristics : material issolid at room temperature and is convenient to install, used between the heat sink and device. When they reach the product phase change temperature materials become soft, flowing, filled into the device small irregular contact surface. So completely have the ability to fill the gaps between the interface of the air gap and the device and heat sink, the phase change pad is better than that of non flow elastomer or graphite based thermal pad, and has the properties of thermal grease.



Application



High frequency microprocessor, chipset, graphics processing chips /power AMP chip, cache memory chip, customer homemade ASICS .

DC--DC converter, memory module, power module, memory module, solid state relay, bridge rectifier

Advantage :

Low thermal resistance under low pressure

Inherent viscosity, easy to use and not need to use the adhesive

No need preheating the radiator

Flow but not silicone oil

Low volatility -- less than 1%



Typical Properties of This Materials



Item Product Numbers
Physical Property Testing Standard PCM010 PCM020 PCM030 PCM040 PCM050 PCM060
Colour Blue Blue Blue Gray Gray Gray Customiza
Thickness(mm) ASTM D374 0.5-5.0 0.5-5.0 0.5-5.0 0.5-3.0 0.5-3.0 0.5-3.0
Density(g/cm³) ASTM D792 2.1 2.5 3 3.2 3.3 3.4
Hardness(Shore 00) ASTM D2240 30-80 30-80 30-80 30-80 40-80 40-80
Volumetric Resistivity(Ω•cm) ASTM D257 >1×10ˆ13 >1×10ˆ13 >1×10ˆ13 >1×10ˆ12 >1×10ˆ12 >1×10ˆ12
Breakdown Voltage(Vac/mm) ASTM D149 >6000 >6000 >6000 >6000 >6000 >6000
Operating Temperature(℃) / -50~200 -50~200 -50~200 -50~200 -50~200 -50~200
Thermal Conductivity(W/m.K) ASTM D5470 1 2 3 4 5 ≥6
UL94 Flame Retardant Grade UL94 V0 V0 V0 V0 V0 V0



Product details

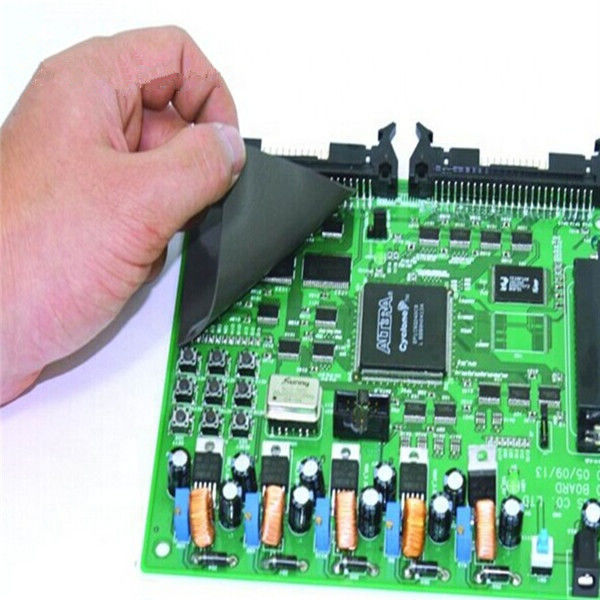

Insulated 10.4Mpa 2.1g/Cm3 Heat Conductive Rubber Pad 0

Insulated 10.4Mpa 2.1g/Cm3 Heat Conductive Rubber Pad 1



Package And Shipping



Insulated 10.4Mpa 2.1g/Cm3 Heat Conductive Rubber Pad 2



FAQ



1. What are your main products?
We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.


2. What about the product quality and which certificate do you have?
We have UL certificate,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?


For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.


4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
