| Place of Origin: | China |
|---|---|
| Certification: | ROHS,UL,REACH |
| Model Number: | LM-PCM |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Packed in Carton |
| Delivery Time: | 3~7 Work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/Day |
| Working Temperature: | 40~+220 Degree Celsius | Hardness: | 20-80 Shore C |
|---|---|---|---|
| Product Name: | Phase Change Silicone Sheet | Application: | High Temperature, LED,CPU,TV,PCB,PC,PDP Chip Etc |
| Tensile Strength: | 10.4Mpa | Thickness: | 0.03"~0.10"mm |
| Conductivity: | 0.80-3.5W/M-K | Phase Change Temp: | 50~60 Degree Celsius |
| Highlight: | 80 shore C bio phase change material,10.4Mpa bio phase change material,10.4Mpa thermal phase change material |
||

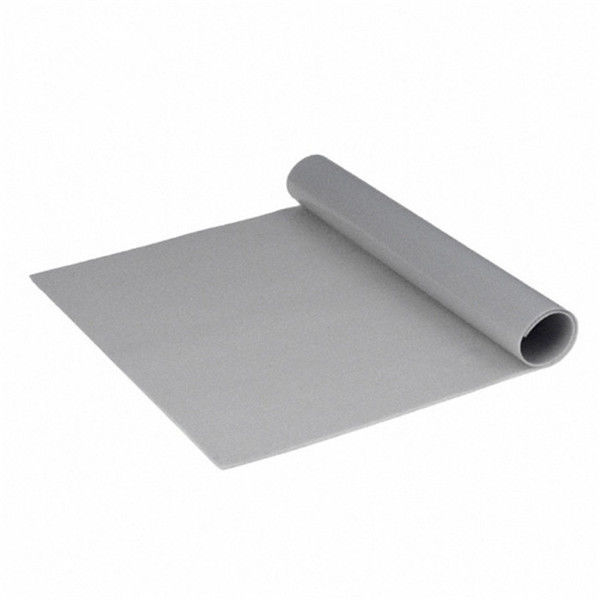

High Conductivity Working Temperature -40~+220℃ Organic Phase Change Materials
Phase Change Interface Material is solid at room temperature and is convenient to install, used between the heat sink and device.
When they reach the product phase change temperature materials become soft, flowing, filled into the device small irregular contact surface.
So completely have the ability to fill the gaps between the interface of the air gap and the device and heat sink, the phase change pad is better than that of non flow elastomer or graphite based thermal pads.
Features & Benefits:
1. Low heat resistance and low stress
2. Natural sticky, easy to use-no need to use glue
3. No radiator preheating
4. Flow but not silicon oil
5. Low volatility--less than 1%
Physical Properties
|
Test item |
Test method |
Unit |
Test Value |
|
Color |
Visual |
- |
Grey |
|
Thickness |
ASTM D374 |
Mm |
0.1 to0.5 |
|
Specific Gravity |
ASTM D792 |
g/cm3 |
1.8±2.5 |
|
Operating Temp |
- |
℃ |
-40 to +220 |
|
Phase Change Temp |
- |
℃ |
50 to 60 |
| Storage conditions | - |
℃ |
25°C/30~80°C / 30min 100 cycles |
|
Cold and hot shock resistance cycle |
- |
Times |
>2000 |
|
Thermal Impedance@50psi |
ASTMd5470 |
°C-in2/W |
0.018 to 0.46 |
|
Conductivity |
ASTM D5470 |
w/m-k |
0.8-3.5 |
Product Details
PackageAnd Shipping
Q:What’s the thermal conductivity test method given on the data sheet?
A: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for your application?
A: It depends on the watts of power source, ability of heat dissipation. For any customers, please contact us for the technical support.
Q: Are thermal pads offered with tacky?
A: Yes, all the thermal pads have its inherent tacky. All the models are natural tacky for two sides, except for the LCP series ,only one side has natural tacky. LCB series thermal pads can be cover 3M glue with strong
adhesive.
Q: Are thermal pads reworkable?
A: It’s depend on the application and the pad being used. Thermal pads have been reused before, however,it’s up to the judgment of product designer, to see whether the pads could withstand reuse.
Q:Will the heat make the thermal pads softer?
A: ShoreC 20~80 ,there is no significant change in the hardness of thermal pads, as gap filler.
Q: What’s the tolerance for the thickness?
A :Normally ±0.1mm.
Q: Are the thermal pads electrical insulating?
A: Yes, all thermal pads are electrically isolated.
Q: What’s the shelf life for thermal pads?
A: Shelf life for thermal pad is one year after the date of manufacture. For the pads with adhesive, the shelf life is 6months after the date of manufacture. After these dates, all the characters should be retested.
Q: Can the thermal pads be with fiberglass?
A: YES, we could have thermal pads with fiberglass center to improve customer specific requirements for the tensile strength.LCP series has fiberglass on its surface, all other models will be made at your requirement.
