Blue 2.5g/Cm3 2w/M.K High Temperature Silicone Sheet

Basic Information
Place of Origin: China
Certification: ROHS,UL,REACH
Model Number: LM-PCM
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7 Work days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detail Information
Application: High Temperature Colour: Grey,Blue
Type: Insulator Rated Voltage: 220KV
Thermal Conductivity: 1.5-3.0w/mk Applicable Temperature Range: -55~120c
Cold And Hot Shock Resistance Cycle: ≥2000 Shelf Life: ≥12
High Light:

2w/m.k high temperature silicone sheet

,

2.5g/cm3 silicone cooling pad

,

2w/m.k silicone cooling pad


Product Description

Applicable Temperature Range -55~120c Silicone Rubber Thermal Phase Change Material



Product Dscription



    LM-PCM phase change material is a heat reinforced polymer, designed to meet the Thermal conductivity and reliability demand for the thermal conductivity of high application terminal. In addition, the heat sink’s performance benefits a lot from the low heat resistance. And improve the microprocessor, DC - DC converter of memory module and the reliability of power module.



Feature:

  • High thermal conductivity;
  • Good thermal transfer properties, and easy to use;
  • Heating and pressure will make the sheet thinner, and the thermal resistance will be lower;
  • Excellent heat stability, could be used for a long time

Application:



Used in the occasion that without electrical insulation, mainly apply to heating devices, such as computer industry, integrated circuit market, mobile phone industry, network, communication equipment, automotive electronics, LED lighting, aerospace etc.



Typical Properties of This Materials:





Item



Product Numbers

Physical Property Testing Standard PCM100 PCM200 PCM300 PCM400 PCM500 PCM600



Colour



/



Gray



Gray



Gray



Gray



Gray



Customiza



Thickness(mm)

ASTM D374



0.5-5.0



0.5-5.0



0.5-5.0



0.5-3.0



0.5-3.0



0.5-3.0



Density(g/cm³)



ASTM D792



2.1



2.5



3



3.2



3.3



3.4

Hardness(Shore 00) ASTM D2240



30-80



30-80



30-80



30-80



40-80



40-80

Volumetric Resistivity(Ω•cm) ASTM D257 >1×10ˆ13 >1×10ˆ13 >1×10ˆ13 >1×10ˆ12 >1×10ˆ12 >1×10ˆ12
Breakdown Voltage(Vac/mm) ASTM D149 >6000 >6000 >6000 >6000 >6000 >6000
Operating Temperature(℃) / -50~200 -50~200 -50~200 -50~200 -50~200 -50~200
Thermal Conductivity(W/m.K) ASTM D5470 1 2 3 4 5 ≥6
UL94 Flame Retardant Grade UL94 V0 V0 V0 V0 V0 V0



Product details

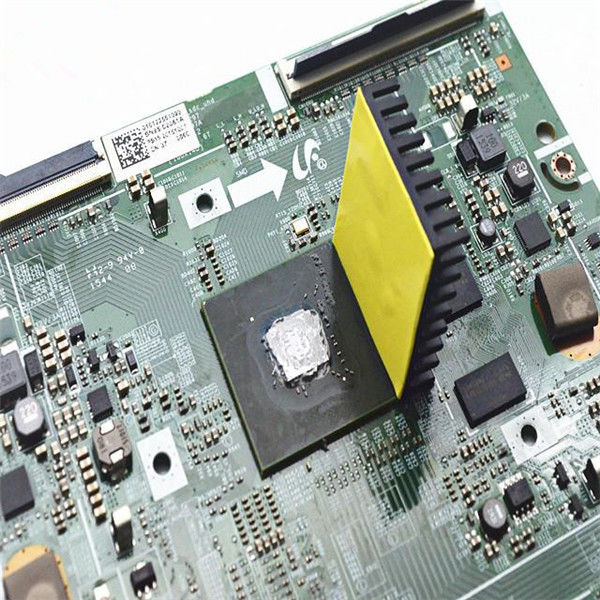

Blue 2.5g/Cm3 2w/M.K High Temperature Silicone Sheet 0

Blue 2.5g/Cm3 2w/M.K High Temperature Silicone Sheet 1

Package & shipping

Blue 2.5g/Cm3 2w/M.K High Temperature Silicone Sheet 2

FAQ



1. What are your main products?
We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of silicone thermally conductive sheet are available, but the freights need to be paid by the buyers.


2. What about the product quality and which certificate do you have?
We have UL certificate,ISO9001,ISO14001 and ROHS certificate.
3. How long does it take to deliver after order?


For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.


4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
