6W/MK High Temperature Silicone Thermal Conductive Pad For PDP LCD PC

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,UL,REACH
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~8Days
Payment Terms: T/T
Supply Ability: 1000000Pieces/Day
Detail Information
Material: Silicone Color: White,Blue,Pink,Grey
Type: Silicone Thermal Pad Application: High Temperature,CPU,LED,Other
Thermal Conductivity: 1.0W/m.k-6.0W/m.k Tensile Strength: Excellent
Thickness: 0.25mm~15mm Size: According To Customer Needs
High Light:

6W/MK Thermal Conductive Pad


High Temperature Thermal Conductive Pad


Silicone soft thermal pads

Product Description

Die-Cuting 1-6W/MKSilicone Thermal Heating Conductive Pads For GPU CPU Heatsink

Product Description

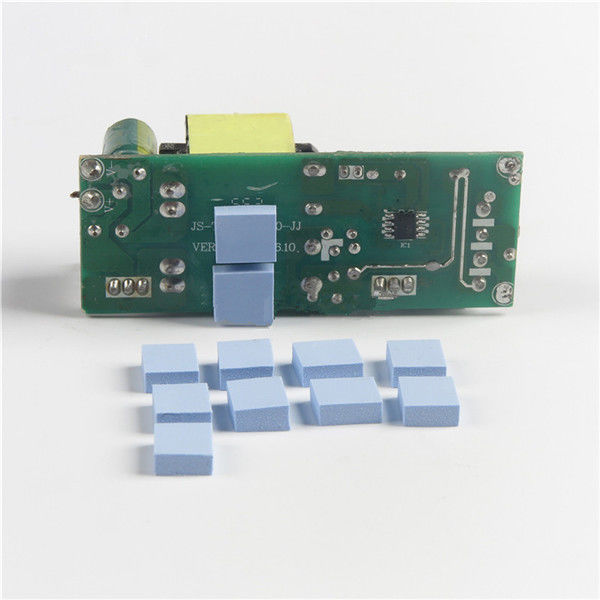

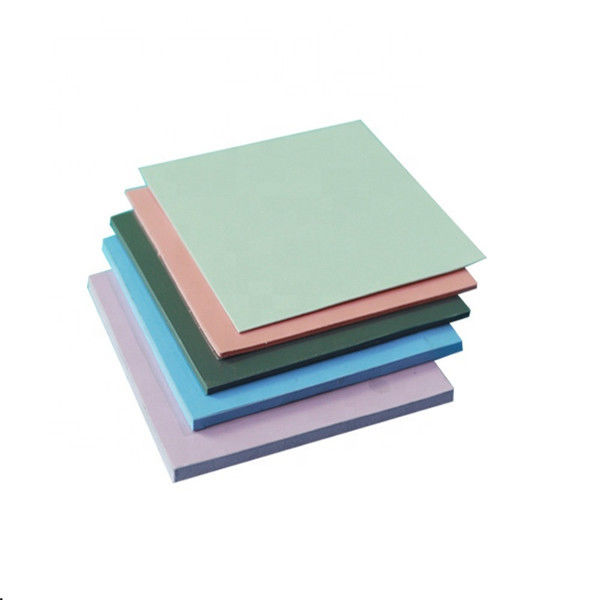

1.Thermal Conductive Silicon Pad is a kind of thermal interface with high performance. It is soft, self-sticky and elastic.

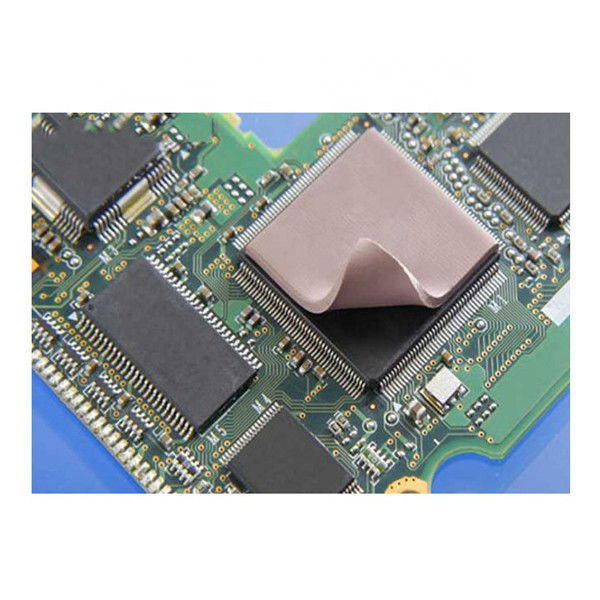

2.It can fill the gap between heat-generating components and heat sink, metal mechanism and shell or other cooling devices.
3.The heat can be transferred out speedily so as to improve the electronic components' working efficiency and prolong the life-span of equipments.




* Thermal Conductivity: 2.0W/m-k

* Tear resistant, soft and conformable

* Excellent electrical insulation


Application Ideas:
★ High Power products like LED lights, LED TV, etc.
★ PDP, LCD, Laptop, PC, Communication hardware equipments, Routers, etc.
★ IC, CPU, COP, Capacitance, MOS, Power Supply Module, Server, Player, Mobile Phone, etc.


Physical Properties




Test Value Test Method


Reinforced Carrier

Fiberglass -----


Pad Type

Silicone Polymer -----



0.30~1.00 ASTM D374



Light Blue VISUAL



2.1 ASTM D792


Hardness(Shore C)

25±5 ASTM D2240


Thermal Conductivity(W/m-k)

2.0 ASTM D2240


Voltage Resistance(KV/mm)

>4.0 ASTM D149


Temperature Resistance(℃/℉)

-40~+220(℃) ASTM D5470


Volume Resistance(Ω .cm)

5.0*1013 ASTM D257


Flame Rating

V-0 UL-94


Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.


Shelf Life


Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.


Available Sizes


Width: Can be Customized

Length: Can be customized

Custom Sizes: If you need customized sizes or die cut parts please feel free to contact NKS sales representative.

Related Products


6W/MK High Temperature Silicone Thermal Conductive Pad For PDP LCD PC 0


Product Description


6W/MK High Temperature Silicone Thermal Conductive Pad For PDP LCD PC 1

6W/MK High Temperature Silicone Thermal Conductive Pad For PDP LCD PC 2

Packaging & Shipping


6W/MK High Temperature Silicone Thermal Conductive Pad For PDP LCD PC 3



Q1: What's the thermal conductivity test method given on the data sheet ?

A1: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.
Q2: How to find a right thermal conductivity for my
application ?
A2: It depends on the watts of power source , ability of heat dissipation .
Q3: Do you accept custom orders ?
A3:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q4: Do you offer free samples ?
A4: Yes, we are willing to offer free sample but pls kindly note that your side pay for freight .

Q5: How to ship the orders ?
A5: We will help to arrange transportation for you . If you want to use your own courier account pls
kindly tell us before shipping out.
Q6: What's the leading time ?
A6: Sample order costs 1~3 workdays and 3~7 workdays for mass production.
