13.0W Thickness 0.5mm Thermal Conductive Pad Gap Filling Materials

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,UL,REACH
Model Number: M-TP1300
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7Days
Payment Terms: T/T
Supply Ability: 1000000Pieces/Day
Detail Information
Material:: Composite Polymer,Silicone Type:: Silicone Thermal Pad
Size:: 200mm*400mm/die Cut Size Available Temp Range:: -40~220℃
Hardness:: 30-50 Shore C Feature:: High Thermal Performance, Soft, Flexible, Natural Viscosity
Thermal Conductivity:: 13.0W/m.k Rated Voltage:: 5 KV/mm
High Light:

0.5mm Thermal Conductive Pad

,

13.0W Thermal Conductive Pad

,

Silicone thermal rubber pad


Product Description

13.0W Thickness 0.5mm Thermal Conductive Pad Gap Filling Materials Cooling Pad for Laptop Led CPU GPU


Product Description

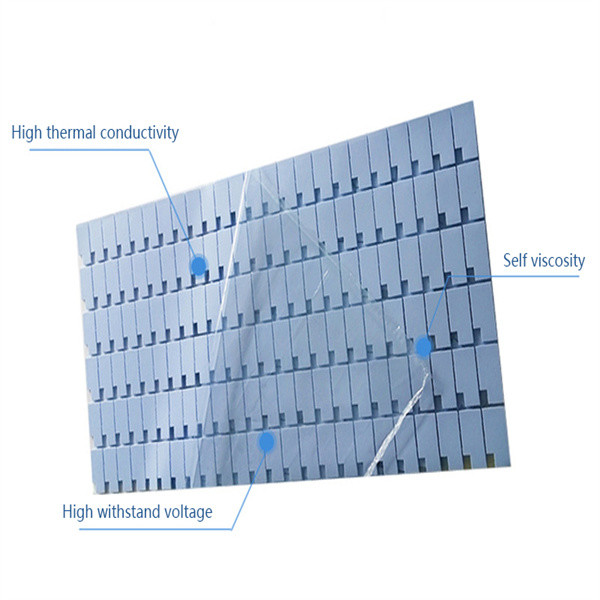

Thermal silicone pad advantage

1. High heat transfer efficiency, low thermal resistance, stable performance
2. Low viscosity on both sides, easy to install and reusable
3. Excellent electrical insulation to protect electronic equipment
4. High and low temperature resistance, good compatibility;
5. Soft and flexible, low hardness, wide range of thickness, can fill any uneven size gap
6. Meet ROHS,UL and SGS environmental requirements.

13.0W Thickness 0.5mm Thermal Conductive Pad Gap Filling Materials 0



Typical applications

1. Radiator bottom or frame
2. High-speed hard drive
3. DRAM memory mode
4. Miniature heat pipe radiator
5. Automobile engine control device
6. Communication hardware
7. Portable electronic devices
8. Semiconductor automatic test equipment

13.0W Thickness 0.5mm Thermal Conductive Pad Gap Filling Materials 1


Product properties




Model

M-TP1300 Test Method



Colors

Gray,blue,light gray Visual



Thickness

1.0-5mm ASTM D751



Density

4.0 g/cc ASTM D297



hardness

30+-5 Shore C ASTM D2240



Tensile strength

8 ASTM D412



Continuous use temp(°F/℃)

(-58 to 392 °F)(-58 to 200 ℃) ***



Breakdown voltage (V)

>3000(Thickness≤0.5mm)

>5000(Thickness≥0.5mm

ASTM D149



Dielectric constant

15.0 M HZ ASTM D150



Volume Resistivity (Ohm.cm)

1012 ASTM D257



Flame rating

94-V0 Equivalent



Thermal conductivity

13.0 W/m-K ASTM D5470



Can add fiberglass

Every thickness can add fiberglass,marked by FG

Product Details

13.0W Thickness 0.5mm Thermal Conductive Pad Gap Filling Materials 2



13.0W Thickness 0.5mm Thermal Conductive Pad Gap Filling Materials 3



Our Services




Online Services:24 hours,Inquiry reply within fastest.



Well- Trained & Experienced Staff are to answer all your requirements.



Standard Export Carton Or Marked With Customer's Information Or Customized.



Sample Order delivered within 24 hours.



Packaging & Shipping



-Packaging:Export Standard Packing



-Shipping:TNT/UPS/EMS/DHL/FedEx



-Delivery Time :3-5 days



13.0W Thickness 0.5mm Thermal Conductive Pad Gap Filling Materials 4

FAQ



Q1: What's the thermal conductivity test method given on the data sheet ?

A1: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.

Q2: How to find a right thermal conductivity for my
application ?
A2: It depends on the watts of power source , ability of heat dissipation .

Q3: Do you accept custom orders ?
A3:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q4: Do you offer free samples ?
A4: Yes, we are willing to offer free sample but pls kindly note that your side pay for freight .

Q5: How to ship the orders ?
A5: We will help to arrange transportation for you . If you want to use your own courier account pls
kindly tell us before shipping out.

Q6: What's the leading time ?
A6: Sample order costs 1~3 workdays and 3~7 workdays for mass production.
