Gpu Cpu Led Light Heatsink Cooling Thermal Conductive Silicone Pad

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,UL,REACH
Model Number: M-TP1280
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7Days
Payment Terms: T/T
Supply Ability: 100000Pieces/Day
Detail Information
Material: Silicone Color: Blue,Yellow,Pink,RED,Black,Customzied
Type: Insulation Sheet,High Temperature Tensile Strength: Excellent
Density (±0.3): 3.0~3.5 G/cm³ Breakdown Voltage: >10 KV/mm,>9 KV/mm,>8 KV/mm,>7 KV/mm,>6 KV/mm
Thermal Conductivity: 1.5~15W/KM Hardness: 25-55 Shore C
High Light:

Gpu heat conductive rubber pad

,

silicone heat conductive rubber pad

,

OEM Thermal Conductive Silicone Pad


Product Description

Silicone Conductive Cooling Interface Material Gpu Cpu Led Light Thermal Pad



Desrciption of Silicone Conductive Material

M-TP1280 thermal conductive silicone pad has excellent compressibility and insulation, which can be used to fill the air gap between the heating device and the heat sink or the metal base, so that there can be good heat transfer between the heat dissipation location and the heating location. Soft and elastic, it can cover the uneven surface, thus improving the efficiency of heating electronic components and extending the service life of electronic equipment. In addition, the product also has the function of damping, sealing and so on, can achieve the design requirements of equipment miniaturization and ultra-thin, it is a kind of product with practicability and technicality.

Thermal Conductivity :12,8.0W/m.K Standard size:200mm×400mm,Thickness:0.3—10.0mm Thermal silicon pad can be coated with adhesive, insulating cloth, copper foil, aluminum foil on one side or both sides.
Glue type: standard glue/3M9448A/3M467
Can be processed into various specifications and any kinds of shapes according to customers’ demands.


Physical Properties

Product Name 12.8W/M.K High Conductivity Interface Thermal Pads For CPU



Model



M-TP1280



Color



Blue/Grey



Thickness



0.3~10.0mm



Hardness



25~80



Specific Gravity



3g/cm3



Tensile Strength



0.19Mpa



Elongation



40%



Tear Strength



0.9KN/m



Breakdown Voltage

≥10KV/mm



Volume Resistivity



1×1012Ω·cm



Continuous Use Temp



-40~200℃



Flame Rating



V-0



Weight Loss



≤0.3



Dielectric Constant



7



Thermal Conductivity



12.8W/m.k



Shipping



DHL/UPS/FedEx/Aramex/EMS/HK Post





Features of Led Light Thermal Pad



1. High heat transfer efficiency, low thermal resistance, stable performance
2. Low viscosity on both sides, easy to install and reusable
3. Excellent electrical insulation to protect electronic equipment
4. High and low temperature resistance, good compatibility;
5. Soft and flexible, low hardness, wide range of thickness, can fill any uneven size gap
6. Meet ROHS,UL and SGS environmental requirements.





Applications of Silicone Conductive Material

  • Power supply module
  • Car battery pack
  • Power conversion equipment
  • Car equipment / charger
  • Where heat is to be transmitted to a rack, chassis, or other heat sink

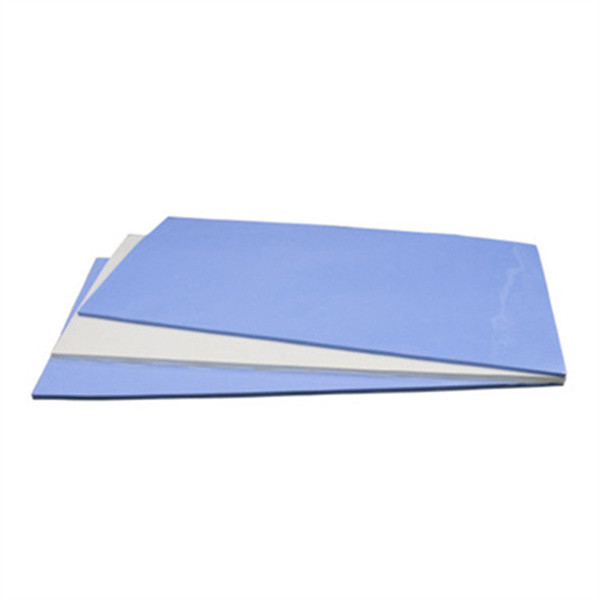

Gpu Cpu Led Light Heatsink Cooling Thermal Conductive Silicone Pad 0





Product Details

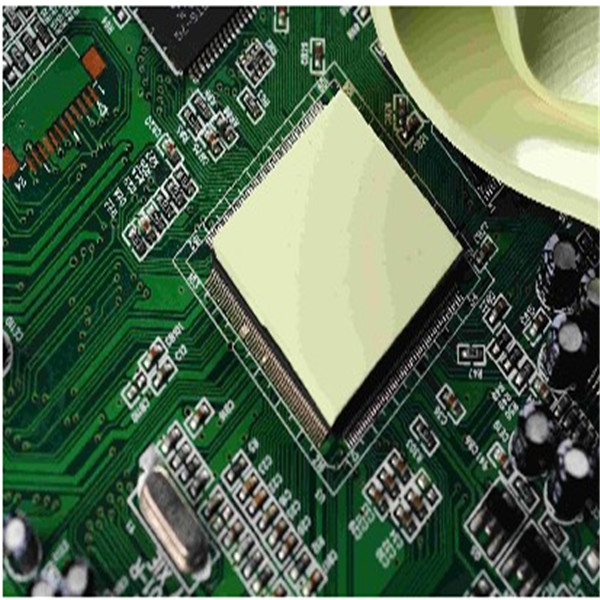

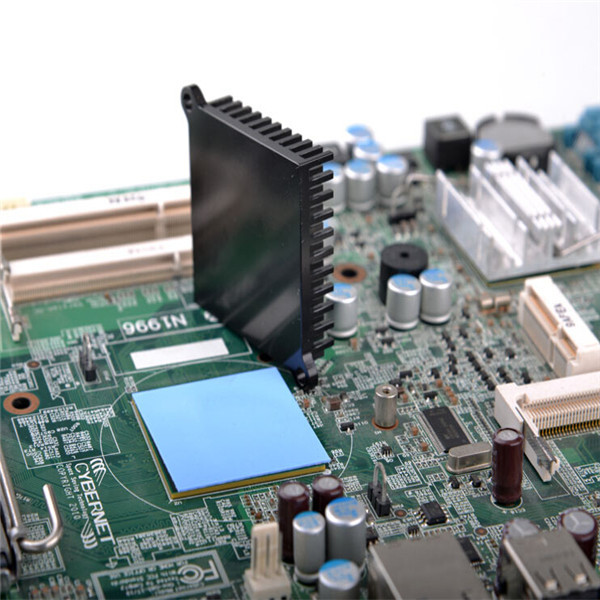

Gpu Cpu Led Light Heatsink Cooling Thermal Conductive Silicone Pad 1Gpu Cpu Led Light Heatsink Cooling Thermal Conductive Silicone Pad 2Gpu Cpu Led Light Heatsink Cooling Thermal Conductive Silicone Pad 3



Packaging & Shipping



Gpu Cpu Led Light Heatsink Cooling Thermal Conductive Silicone Pad 4


FAQ



Q1: What's the thermal conductivity test method given on the data sheet ?

A1: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.

Q2: How to find a right thermal conductivity for my application?
A2: It depends on the watts of power source , ability of heat dissipation .

Q3: Do you accept custom orders ?
A3:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q4: Do you offer free samples ?
A4: Yes, we are willing to offer free sample but pls kindly note that your side pay for freight .

Q5: How to ship the orders ?
A5: We will help to arrange transportation for you . If you want to use your own courier account pls
kindly tell us before shipping out.

Q6: What's the leading time ?
A6: Sample order costs 1~3 workdays and 3~7 workdays for mass production.
