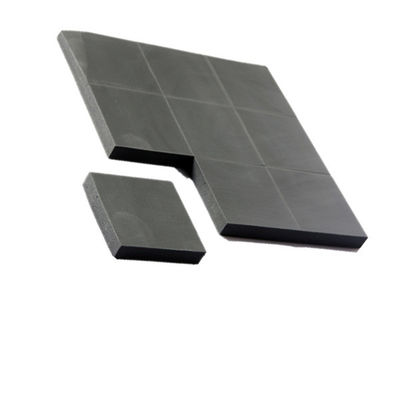

5.88Mpa Self Adhesive Thermal Conductive Silicone Pad High Temperature

Basic Information
Place of Origin: Guangdong,China
Certification: ROHS,UL,REACH
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7Days
Payment Terms: T/T
Supply Ability: 1000000Pieces/Day
Detail Information
Application: High Temperature, LED,CPU,TV,PCB,PC,PDP Chip Etc Name: Thermal Conductive Silicone Pad
Tensile Strength: 5.88Mpa Hardness: 18±5~40±5 Shore C
Thickness: 0.3-20mm Conductivity: 1.0-10.0W/M-K
Density (g/cm3): 1.4-3.1
High Light:

5.88Mpa Thermal Conductive Silicone Pad

,

ODM Thermal Conductive Silicone Pad

,

ODM thermal conductive pad


Product Description

Self Adhesive Thermal Conductive Silicone Pad High Temperature



Description of Thermal Conductive Pad

1. Our Thermal Conductive Silicon Pad is a kind of thermal interface with high performance. It is soft, self-sticky and elastic.

2. It can fill the gap between heat-generating components and heat sink, metal mechanism and shell or other cooling devices.

3. The heat can be transferred out speedily so as to improve the electronic components' working efficiency and prolong the life-span of equipment.


Features & benefits:
  • Low cost, high efficiency and high cost performance.
  • Thermal conductive silicone grease to replace volatile pollution.
  • Natural stickiness, easy assembly, repeatable disassembly
  • High electrical insulation

Electronic Isolator Thermal Pad Application:

Communication equipment,
Mobile,Electronic equipment,
LED Light,
Video equipment,
Switching power supply,
Networking equipment,
Back light model,
Household appliances,
Medical equipment,
PC server/workstations,
The filling between PCB and heat sink,
The filling between IC and heat sink or product outer coving,
The filling between IC and similar heatsink cooling materials.


Physical Properties



Standard size:200mm×400mm,300mm×400mm;Customized size available;





Property



M-TP



Unit



Tolerance



Test Method



Composition



Filled silicone elastomer





Color



Purple/Pink/Grey/Blue







Visual



Thermal conductive



1.0~10



W/m.K



±10%



ASTM D5470

Thickness



20~400(1mil=0.0254mm)



mil

±10%



ASTM D374



0.5~10



mm



ASTM D374



Hardness



40-80



Shore 00

ASTM D2240



Density



1.4-3.1



g.cm-3







Temperature Range



-40~+200







Breakdown Voltage



>3000(0.3mm~0.5mm)

V ASTM D149



>5000(>0.5mm)



Flame Rating



UL 94 V-0







UL 94



Dielectric Constant



12.6



MHz





ASTM D150


Product Details



5.88Mpa Self Adhesive Thermal Conductive Silicone Pad High Temperature 05.88Mpa Self Adhesive Thermal Conductive Silicone Pad High Temperature 1

5.88Mpa Self Adhesive Thermal Conductive Silicone Pad High Temperature 2

5.88Mpa Self Adhesive Thermal Conductive Silicone Pad High Temperature 35.88Mpa Self Adhesive Thermal Conductive Silicone Pad High Temperature 4







Product Usage

5.88Mpa Self Adhesive Thermal Conductive Silicone Pad High Temperature 5





FAQ



Q1: What's the thermal conductivity test method given on the data sheet ?

A1: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.

Q2: How to find a right thermal conductivity for my
application ?
A2: It depends on the watts of power source , ability of heat dissipation .

Q3: Do you accept custom orders ?
A3:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q4: Do you offer free samples ?
A4: Yes, we are willing to offer free sample but pls kindly note that your side pay for freight .
