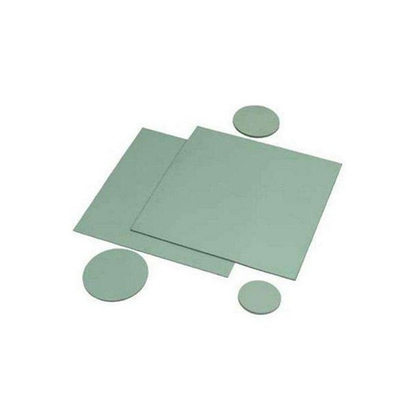

Thermal Conductive Silicone Pad Insulating Pad for CPU Electronics

Basic Information
Place of Origin: China
Certification: Rohs,Reach,UL
Model Number: M-TP300
Minimum Order Quantity: 10000PCS
Price: Negotiation
Packaging Details: Soft Material and Carton
Delivery Time: 5~7 work days
Payment Terms: T/T
Supply Ability: 10000000000PCS/Day
Detail Information
Elongation: 100% Temp Range: -40~220℃
Sample: Avaliable Provided Usage: CPU,Electronics Etc
Hardness: 45 Shore C Thermal Conductivity: 3.0 W/mK
Continuous Use Temp: -60 To 200℃ Tensile Strength: 3 MPa

Product Description

Product Description:

Our Silica Gel Thermal Heat Sink Pad is engineered with a high-volume resistivity of 1x10^13 Ω·cm, making it an ideal choice for electrical insulation applications. This ensures that your electronic components remain safe and protected from electrical currents that could potentially damage them.

With a 100% elongation factor built into the design, the Silica Gel Thermal gap filler has excellent flexibility and can easily conform to the shape of your electronic components. This ensures that there are no air gaps or spaces that could hinder the effectiveness of the thermal conductivity.

Furthermore, the Silica Gel Thermal Heat Sink Pad boasts an impressive dielectric strength of 5 KV/mm, making it an excellent insulator for high-voltage applications. Whether you are working with power supplies, transformers, or any other electrical equipment, our thermal gap filler is the perfect solution for your needs.

Overall, the Silica Gel Thermal Heat Sink Pad is a must-have product for anyone looking to improve the performance and longevity of their electronic devices. Whether you are a professional technician or a DIY enthusiast, this insulating pad is easy to use and provides reliable results. So why wait? Order your Silica Gel Thermal Heat Sink Pad today and experience the benefits for yourself!



Features:

  • Product Name: Thermal Conductive Silicone Pad
  • Material: Silicone
  • Breakdown Voltage: 6 KV
  • Sample: Available Provided
  • Thermal Conductivity: 3.0 W/mK
  • Color: Grey

This Thermal Conductive Silicone Pad is a great Insulating Pad that provides an effective Thermal Heat Sink Pad solution for various applications.



Technical Parameters:

Sample: Avaliable
Tensile Strength: 3 MPa
Elongation: 100%
Volume Resistivity: 1x10^13 Ω·cm
Material: Silicone
Temp Range: -40~220℃
Continuous Use Temp: -60 To 200℃
Dielectric Strength: 5 KV/mm
Thermal Conductivity: 3.0 W/mK
Hardness: 45 Shore C
Thermal Conductive Silicone Pad Insulating Pad for CPU Electronics 0

Applications:

The Thermal Conductive Pad is designed to help dissipate heat away from sensitive components, making it a great choice for use in CPUs and other heat-sensitive applications. The pad can be used in a variety of electronic devices to help prevent overheating and reduce the risk of damage to the device.

The M-TP300 Silica Gel Thermal Pad is also an excellent choice for use in high-temperature environments, as it has a continuous use temperature range of -60 to 200℃. This makes it ideal for use in a variety of different applications, including automotive and industrial applications.

Whether you are looking for an Insulating Pad for use in your electronics projects or a Thermal Conductive Pad for use in high-temperature environments, the M-TP300 Silica Gel Thermal Pad is an excellent choice. Made in China, this high-quality product is designed to provide reliable performance and long-lasting durability.

So if you're looking for a versatile and reliable Insulating Pad or Thermal Conductive Pad for your next project, be sure to check out the M-TP300 Silica Gel Thermal Pad today!



Customization:

Model Number: M-TP300

Place of Origin: China

Sample: Available Upon Request

Rated Voltage: 5 KV/mm

Material: Silicone

Tensile Strength: 3 MPa

Temp Range: -40~220℃

Our Thermal Conductive Pad, also known as Thermal Silicone Pad or Insulating Pad, can be customized to fit your specific needs. Contact us today to discuss your requirements.



Support and Services:

The Thermal Conductive Silicone Pad is designed to provide effective thermal management for electronic devices. It features high thermal conductivity and excellent insulation properties, making it ideal for use in a variety of applications, including computers, LED lighting, and power supplies.

Our product technical support and services include:

  • Expert technical support to help you select the right product for your application
  • Product data sheets and technical specifications
  • Customized product development to meet your specific requirements
  • Quality assurance and testing to ensure product performance and reliability
  • Product training and education to help you get the most out of your purchase
  • After-sales support and warranty services
