2.85g/Cc 3.0W/M.K Self Adhesive Thermal Insulation Sheet

Basic Information
Place of Origin: China
Certification: ROHS,UL,REACH
Model Number: LM-PCM
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7 Work days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detail Information
Type: Insulation Sheet Application: Communications Equipment
Tensile Strength: 45 Construction & Compostion: Silicone Elastomer, Thermally Conductive Ceramic
Specific Gravity, (g/cc): 2.85g/cc Dielectric Constant, (1000 Hz): 3.0
Thickness (inch/mm): 0.005-0.127mm Continuous Use Temp °F/ ℃: -40℃ To 125℃
Phase Change Temperature: 50℃-60℃ Color: Gray
High Light:

2.85g/cc Thermal Insulation Sheet

,

3.0W/m.K heat resistant thermal sheet

,

3.0W/m.K Thermal Insulation Sheet


Product Description

Thickness 0.005-0.127mm PCM Phase Change Material For Communications Equipment


Product Description

   LM-PCM is a thermal phase change Materials(PCM).The phase change Temperature is 50℃.It is solid sheet At room temperature ,and it begins to Soften and flow at temperature above Its transition temperature. Also,it is inherently tacky, flexible and withe inherently tacky, flexible and with Cut and used between the radiator and Power consumption electronic devices To reduce the thermal resistance. This material is easy to operate and has high reliability.

Physical Properties




Product Name

Thermal Phase Change Material

Color

Gray

Test Method
Construction & compostionn

Silicone elastomer, thermally conductive ceramic

Visual

Thickness (inch/mm)

0.005-0.127mm

/

Specific Gravity, (g/cc)

2.85g/cc

ASTM D792

Shelf life(month)

12

ASTM D2240
Phase Change Temperature

50℃

ASTM D412
Continuous Use Temp °F/ °C

-40 to 125°C

ASTM D575
Dielectric Breakdown Voltage,(V)

>2500

ASTM D412
Dielectric Constant, (1000 Hz)

3.0

/
Volume Resistivity ohm-meter

2.0 X 1010

UL 94

Fire rating

94 V0

ASTM D5470
Thermal Conductivity,(W/m-K)

3.0

ASTM D5470
Dielectric Breakdown Voltage

>200 VAC/mil

ASTM D149

Volume Resistivity

1*10^13ohm-cm

ASTM D257

Dielectric Constant @1MHz

5.8

ASTM D150
Features and Benefits
- 3.0W/mK thermal conductivity
- High thermal conductivity, low thermal resistance
- Solid state at room temperature and liquid state after phase change temperature
- Inherently tacky and easy to use
- High reliability



Product Details

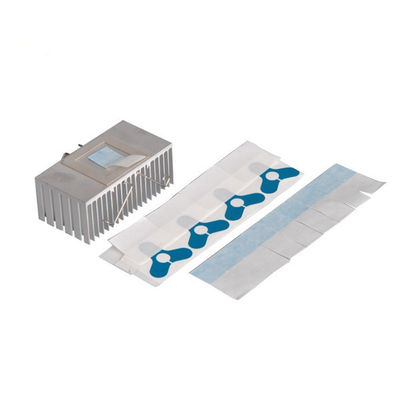

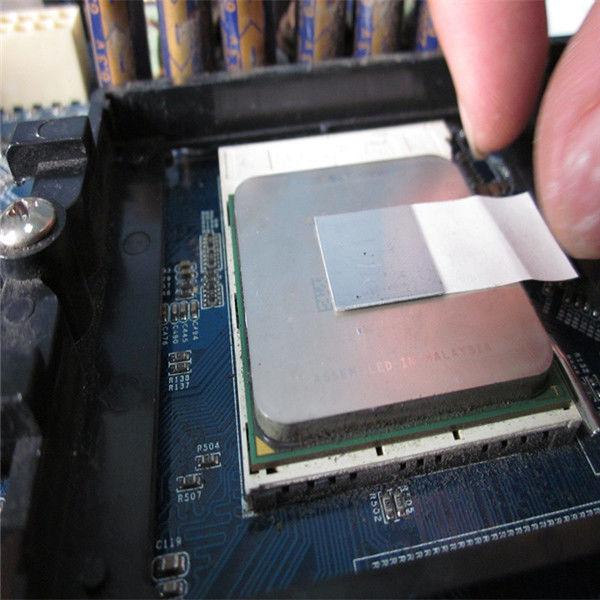

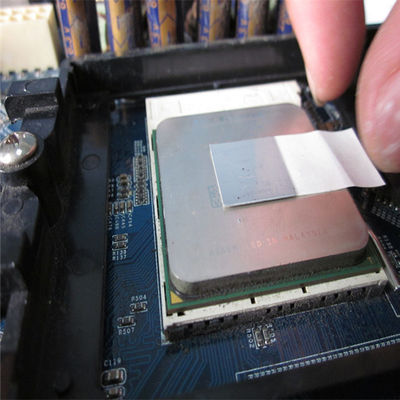

2.85g/Cc 3.0W/M.K Self Adhesive Thermal Insulation Sheet 02.85g/Cc 3.0W/M.K Self Adhesive Thermal Insulation Sheet 12.85g/Cc 3.0W/M.K Self Adhesive Thermal Insulation Sheet 2

PackageAnd Shipping

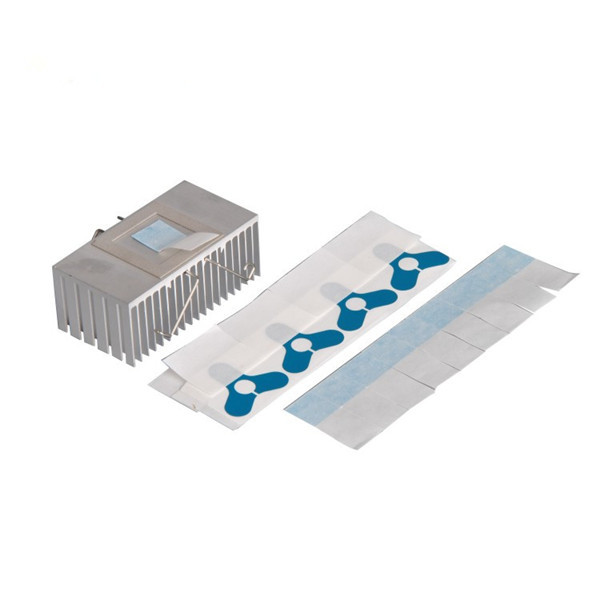

2.85g/Cc 3.0W/M.K Self Adhesive Thermal Insulation Sheet 3

FAQ

Q:What’s the thermal conductivity test method given on the data sheet?
A: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for your application?
A: It depends on the watts of power source, ability of heat dissipation. For any customers, please contact us for the technical support.

Q: Are thermal pads offered with tacky?
A: Yes, all the thermal pads have its inherent tacky. All the models are natural tacky for two sides, except for the LCP series ,only one side has natural tacky. LCB series thermal pads can be cover 3M glue with strong

adhesive.



Q: Are thermal pads reworkable?
A: It’s depend on the application and the pad being used. Thermal pads have been reused before, however,it’s up to the judgment of product designer, to see whether the pads could withstand reuse.

Q:Will the heat make the thermal pads softer?
A: ShoreC 20~80 ,there is no significant change in the hardness of thermal pads, as gap filler.

Q: What’s the tolerance for the thickness?
A :Normally ±0.1mm.

Q: Are the thermal pads electrical insulating?
A: Yes, all thermal pads are electrically isolated.

Q: What’s the shelf life for thermal pads?
A: Shelf life for thermal pad is one year after the date of manufacture. For the pads with adhesive, the shelf life is 6months after the date of manufacture. After these dates, all the characters should be retested.

Q: Can the thermal pads be with fiberglass?
A: YES, we could have thermal pads with fiberglass center to improve customer specific requirements for the tensile strength.LCP series has fiberglass on its surface, all other models will be made at your requirement.
