5.0mm Thickness 60 Shore 00 Silicone Free Thermal Pad For Hard Disk

Basic Information
Place of Origin: China
Certification: ROHS,REACH,UL
Model Number: LM-NG400
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in Carton
Delivery Time: 3~7 Days
Payment Terms: T/T
Supply Ability: 1000000PCS/Day
Detail Information
Rated Voltage: 10KV Thickness: 0.5~5.0mm
Weight Loss: <1% Tensile Strength: 2 Kgf/cm2
Hardness: 60 Shore 00 Flame Rating: UL 94 V-0
Elongation: 100%
High Light:

60 Shore 00 thermal gap filler pad

,

60 Shore 00 silicone free thermal pad

,

5.0mm thickness thermal gap filler pad


Product Description

Thickness 0.5~5.0mm Non-Silicone Thermal Pad Thermal Gap Filler Pad For Hard Disk

Product Description


  LM-NG400 is high-performance,thermal conductive gap filling materials, mainly for the transmission interface between the electronic equipment,and heat sink or product outer coving.

With nice stickiness,flexibility, good compression performance and excellent heat conductivity designed for it,it makes the products can discharge gas from the electronic original and heat sink, to achieve fully conforming and obviously cooling effect.


Features


Non siloxane and oil-bleed
Ultra soft and great elongation
Very low thermal impedance
Electrical insulation
Great thermal conductivity

Application

Best for hard disk
Electronic components: IC, CPU, MOS, LED,

Mother Board,Power Supply, Heat Sink, LCD-TV,

Notebook , PC,Telecom Device, Wireless Hub,

DDR ll Module, DVD Applications, Hand-set applications etc.

Configurations

Size:100*100 mm
Thickness:1.0 mm



Phisical Properties




Properties



LM-NG400



Unit



Tolerance



Test Method



Color

Grey - - Visual



Thickness

0.5~5.0 mm - ASTM D374



(the thickness can be ordered)

0.0197~0.1969 inch - ASTM D374



Thermal Conductivity

4 W/m.k ±0.4 ASTM D5470



Flame Rating

V-0 - - -



Dielectric Breakdown Voltage

10 kV/mm - ASTM D149



Weight Loss

<1 % - ASTM E595



Density

2.5 g/cm3 ±0.2 ASTM D792



Working Temperature

-30~+125 °C - -



Volume Resistance

>1010 Ohm-m - ASTM D257



Elongation

100 % - ASTM D412



Tensile Strength

2 Kgf/mm2 - ASTM D412



Standard Shape

Sheet ones - - -



Hardness

60 Shore 00 ±10 ASTM D2240



Configurations available: 200mm*400mm, specific size could be provided according to your requirement





Product Details

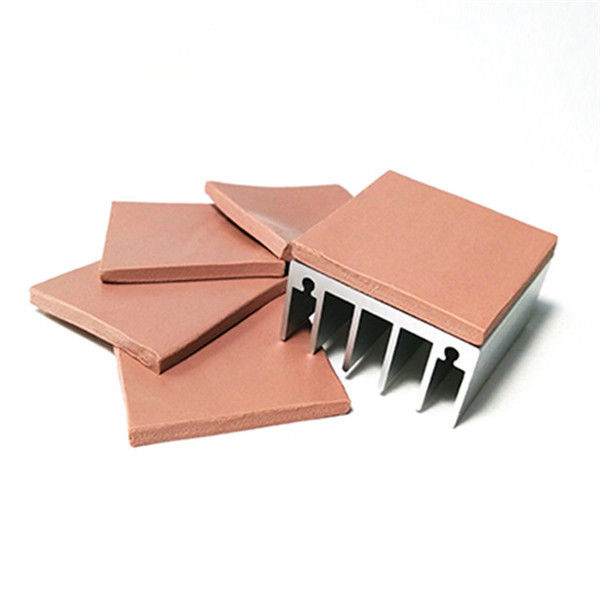

5.0mm Thickness 60 Shore 00 Silicone Free Thermal Pad For Hard Disk 05.0mm Thickness 60 Shore 00 Silicone Free Thermal Pad For Hard Disk 1

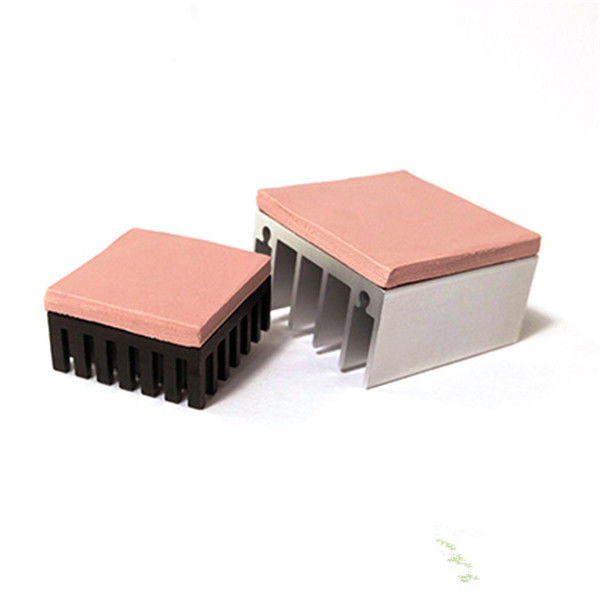

5.0mm Thickness 60 Shore 00 Silicone Free Thermal Pad For Hard Disk 2

FAQ

Q1: What thermal conductivity test method was used to achieve the values given on the data sheets?
A1: A test fixture is utilized that meets the specifications outlined
in DRL-III.

Q2: Is GAP PAD offered with an adhesive?
A2: Currently, All GAP PAD Materials have inherent tack.

Q3: Is the adhesive reuse?
A3: Depending on the surface being applied to, if care is taken, the pad may be reuse. Special care should be taken.When removing
the pad from aluminum or anodized surfaces to avoid tearing or delamination.

Q4: What is meant by “natural tack”?
A4: The characteristic of the rubber itself has a natural inherent tack, with the addition of an adhesive. As with adhesive backed
products, the surfaces with natural tack may help in the assembly process to temporarily hold the pad in place while the
application is being assembled. Unlike adhesive backed products, inherent tack does not have a thermal penalty since the rubber
itself has the tack. Tack strength varies from one GAP PAD product to the next.

Q5: Can GAP PAD with natural tack be repositioned?
A5: Depending on the material that the pad is applied to, in most cases they are repositionable. Care should be taken when
removing the pad from aluminum or anodized surfaces to avoid tearing or delaminating the pad. The side with the natural tack is
always easier to reposition than an adhesive side.

Q6: Is GAP PAD reworkable?
A6: Depending on the application and the pad being used, GAP PAD has been reworked in the past. Some of our customers are
currently using the same pad for reassembling their applications after burn-in processes and after fieldwork repairs. However,this
is left up to the design engineer’s judgment as to whether or not the GAP PAD will withstand reuse.

Q7: Will heat make the material softer?
A7: From -40°C to 200°C, there is no significant variance in hardness for silicone GAP PAD Materials and Gap Fillers.

Q8: What is the shelf life of GAP PAD?
A8: Shelf life for most GAP PAD Materials is ten (10) year after the date of manufacture. For GAP PAD with adhesive, the shelf
life is two (2) years from the date of manufacture. After these dates, inherent tack and adhesive properties should be
recharacterized. The GAP PAD material’s long-term stability is not the limiter on the shelf life; it is related to the adhesion or
“age up” of the GAP PAD to the liner. Or in the case of a GAP PAD with adhesive, the shelf life is determined by how the adhesive
ages up to the removable liner.
Q9: How is extraction testing performed?
A9: The test method used is the Soxhlet Extraction Method;

Q10: What is the thickness tolerance of your pads?
A10: The thickness tolerance is ±0.2mm on materials .

Q11: What are the upper processing temperature limits for GAP PAD and for how long can GAP PAD be exposed to them?
A11: GAP PAD in general can be exposed to temporary processing temperatures of 120°C.Time base on GAP PAD thickness, assembly line
14 meters long,time about 10-15 minutes .

Q12: Is GAP PAD electrically isolating?
A12: Yes, all GAP PAD materials are electrically isolating. However, keep in mind that GAP PAD is designed to fill gaps and it is
not recommended for applications where high mounting pressure is exerted on the GAP PAD.

Q13: Why are “wet out,” “compliance” or “conformability” characteristics of GAP PAD important?
A13: The better a GAP PAD lays smooth “wets out” or conforms to a rough or stepped surface, giving less interfacial resistance
caused by air voids and air gaps. GAP PAD Materials are conformable or compliant as they adhere very well to the surface. The GAP
PAD Materials can act similarly to a “suction cup” on the surface.
This leads to a lower overall thermal resistance of the pad between the two interfaces.

Q14: Is anything given off by the material (e.g., extractables, outgassing)?
A14: Silicone GAP PAD and Gap Fillers, like all soft silicone materials, can extract low molecular weight silicone .Also note that
GAP PAD and Gap Filler have some of the lowest extraction values for silicone-based gap filling products on the market and if
yourapplication requires minimal silicone, see our line of silicone-free material. The White Paper on GAP PAD S-Class and
information about our silicone-free materials are available on our website.

Q15: Why does the Technical Data Sheet describe the Shore hardness rating as a bulk rubber hardness?
A15: A reinforcement carrier is generally used in BERGQUIST GAP PAD Materials for ease of handling. When testing hardness, the
reinforcement carrier can alter the test results and incorrectly depict thinner materials as being harder. To eliminate this
error, a 250 mil rubber puck is molded with no reinforcement carrier. The puck is then tested for hardness. The Shore hardness is
recorded after a 30-second delay.
